型号 Modle | 驱动电压 Diver Voltage (DC V) | 步距角 (1-2相) Step Angle (1-2phase) | 线圈电阻 Coil Resistance (Ω) | 频率 Operation Frequency (PPS) | 牵入转矩 Pull-in Torque (mN.m) | 自定位转矩 Detent Torque (mN.m) | 空载牵入频率 Max.Freeload Pull-in Frequency(PPS) | 空载牵出频率 Max.Freeload Pull-out Frequency(PPS) | 温升 Temperature Rise(K) | 噪音 Noise dB(A) | 绝缘等级 Class Of Insulation |
BH28BYJ46 | 5 | 7.5º/85 | 21 | 100 | ≥50 | ≥50 | ≥500 | ≥1000 | ≤60 | ≤40 | B |
12 | 100 | 100 | ≥90 | ≥50 | ≥500 | ≥1000 | ≤60 | ≤40 | |||

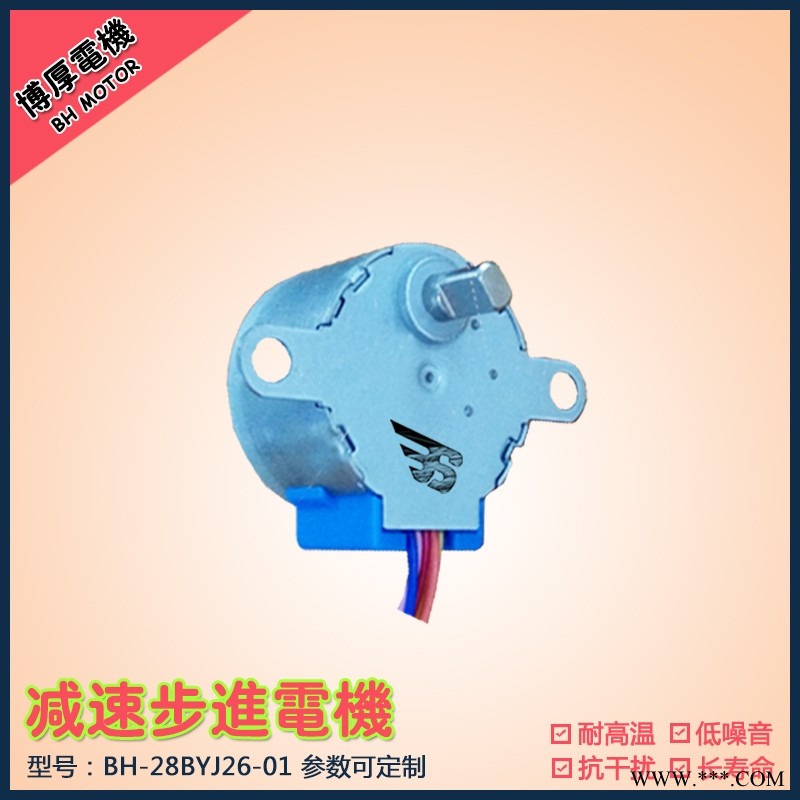

BH28BYJ26 | 5 | 15º/85 | 21 | 100 | ≥60 | ≥50 | ≥400 | ≥600 | ≤60 | ≤40 | |
12 | 100 | 100 | ≥1000 | ≥50 | ≥400 | ≥600 | ≤60 | ≤40 |
