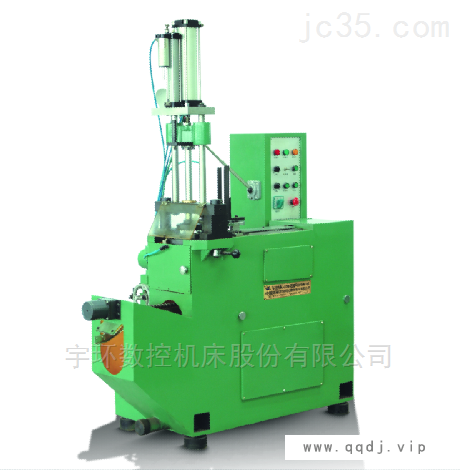

YHXK150A活塞环自动修口机主要用途 Main purpose:
本机型分为干式和湿式两种，湿式是采用冷却液进行修口冷却、修口不烧伤特别适合钢质*铁环修口，也可用于干修口（合金铸铁环），并可连接于活塞环自动加工线上使用。
Piston ring automatic dressing machine provides both dry and wet types. As for the wet type, It adopts the cooling liquid to cool the trimming gap and the gap won’t burn , which is particularly suitable for the steel ring , ball Iron ring, and alloy cast iron ring.It can be connected with piston ring production line
YHXK150A活塞环自动修口机技术特点 Technical characters:
1.整机PLC控制（湿式修口机）。
2.加工活塞环zui大厚度厚环一片，薄环二片环。
3.自动送料对中机构采用高精度滚珠直线导轨和附磁中心摇摆气缸组成。
4.压料装置由附磁轻型气缸和伸出调速阻尼油缸组成。
5.高精度磨头能进行双速调整，砂轮纵、横向调整采用表显.
6.送料、压料和出料自动理环，采用电、气联锁安全防护。
1、PLC control(wet type)
2、Max. thickness of piston rings for processing is two thin piston rings.
3、Automatic feeding alignment includes high precision ball linear guide and swing cylinder attached magnetic center.
4、Magnetic light-type air cylinder and speed-regulate damping oil cylinder compose a stable feeding unit.
5、Wheelhead has two optional speed. It is displayed on panel for longitudinal and latitudinal adjustment of grinding wheel.
6.The piston rings are tidied up automatically when discharged. Interlock unit for safety.
YHXK150A活塞环自动修口机技术参数 Technical parameters:
|
| 单位 | YHXK-150A |
| 加工活塞环直径 | mm | Φ38-Φ150 |
| 生产效率 | cycle/min | 6-8(循环) |
| 砂轮主轴转速 | r/min | 5615；7865 |
| 砂轮尺寸 | mm | Φ150×1.2×Φ130×7×Φ22 |
| 砂轮线速度 | m/s | 44；60 |
| 磨头电机 |
| 1.1KW， 2830r/min |
| 除尘方式 |
| 湿式 |
| 整机质量 | Kg | 600 |
| 机床外形尺寸(长×宽×高) | mm | 1930×810×1800 |
| Type Item | YHXK-150A |
| Dia. of piston ring | Φ38-Φ150mm |
| Production efficiency | 6-8 cycle/min |
| Rotate speed of wheel spindle | 5615r/min; 7865r/min |
| Size of wheel | ф150×1.2×Φ130×7×Φ22mm |
| linear velocity of wheel | 44m/s; 60m/s |
| Motor for wheelhead | 1.1Kw, 2830r/min |
| Ways of dust removing | Wet type |
| Total Weight | 600kg |
| Overall dimensions (L×W×H) | 1930×810×1800mm |
