英国Raptor公司总部位于北爱尔兰拉恩，致力于设计并制造高性能CCD、EMCCD、InGaAs、和X-Ray相机，并为科研、工业成像等应用以及原始设备制造商(OEM)提供光学解决方案。公司通过了ISO9001:2008认证、欧盟CE认证以及欧盟RoHS认证。

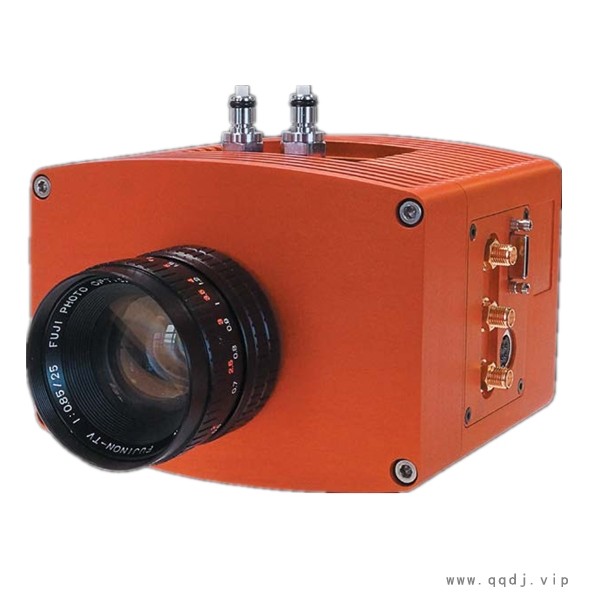

英国Raptor深度制冷EMCCD相机Falcon III为Raptor今年新款产品，可制冷至-70℃，小于1e的低噪声以及高增益使它成为了科研工作者的关注对象。还未上市就以获得广泛的关注，随着Falcon III的成功推出，相信会给所需消费者带来*的工作帮助。
产品特点：
①<1e低噪声
②更快的读取速度（是上一代的3倍）
③高增益x5000
④制冷至-70°C
⑤扩展至紫外及近红外波段（200nm~1100nm）
英国Raptor深度制冷EMCCD相机Falcon III产品参数：
| Sensor Type | 1" Back Thinned frame Transfer EMCCD |
| Active Pixel | 1024 x 1024 |
| Pixel Size | 10µm x 10µm |
| Active Area | 10.2mm x 10.2mm |
| Full Well Capacity | 35ke- |
| Shift Register Well Depth | 200ke- |
| Non-Linearity | ＜1% |
| Readout Noise(RMS) | EM Gain ON:＜1e-EM Gain OFF:＜50e- |
| frame Rate | 31Hz |
| Exposure Time | 1ms to 1hr |
| Dark Current(e/p/s) | 0.001@-70℃ |
| Digital Output Format | 16 bit Camera link (base configuration) |
| Peak Quantum Efficiency | 95%@575nm |
| Spectral Response | 300-1000nm |
| Dynamic Range | EM Gain ON: 91dB EM Gain OFF:57dB |
| Cooling | -40℃ with fan/-70℃ with 20℃ liquid & fan |
| Binning | 1 x 1 up to 32 x 32 |
| Lens Mount | C-Mount |
| Synchronisation | Trigger IN and OUT - TTL compatible |
| Power Supply | 12V DC±10% |
| Total Power Consumption | ＜75W(TEC ON,Steady State) |
| Operating Case Temperature | -20℃ to +55℃ |
| Storage Temperature | -30℃ to +60℃ |
| Dimensions(L*W*H) | 120.9mm x 140.2mm x 113.1mm |
| Weight(no lens) | ＜1.5kg |
产品应用:
①Adaptive Optics and Astronomy
②Calcium signaling
③Fluorescence imaging/spectroscopy
④Flow cytometry
⑤FRET/FRAP/TIRF
⑥Genome sequencing
⑦High content screening
⑧High resolution fluorescence imaging
⑨Hyperspectral imaging
⑩Live cell imaging
