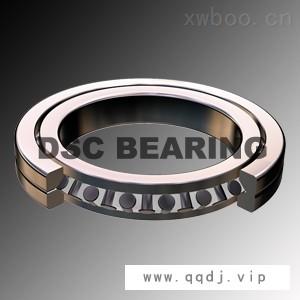

标准型交叉滚子外圈由两件组成,装配后通过连接螺栓将两外圈与滚动体和内圈组成一整体,根据客户要求可带有润滑孔、润滑槽、密封等。 适用于要求内圈旋转精度较高的场合。
轴承型号 Designation | 外形尺寸 Dimensions(mm) | 额定负荷 Basic Load ratings(KN) | 重量 Weight kg | |||||
开式 | 闭式 | d | D | B | rsmin | Cr | Cor | |
CRB3010 | CRB3010UU | 30 | 55 | 10 | 0.3 | 7.35 | 8.36 | 0.12 |
CRB4010 | CRB4010UU | 40 | 65 | 10 | 0.3 | 8.33 | 10.6 | 0.15 |
CRB5013 | CRB5013UU | 50 | 80 | 13 | 0.6 | 16.7 | 20.9 | 0.29 |
CRB6013 | CRB6013UU | 60 | 90 | 13 | 0.6 | 18 | 24.3 | 0.33 |
CRB7013 | CRB7013UU | 70 | 100 | 13 | 0.6 | 19.4 | 27.7 | 0.38 |
CRB8016 | CRB8016UU | 80 | 120 | 16 | 0.6 | 30.1 | 42.1 | 0.74 |
CRB9016 | CRB9016UU | 90 | 130 | 16 | 1 | 31.4 | 45.3 | 0.81 |
CRB10020 | CRB10020UU | 100 | 150 | 20 | 1 | 33.1 | 50.9 | 1.45 |
CRB11020 | CRB11020UU | 110 | 160 | 20 | 1 | 34 | 54 | 1.56 |
CRB12025 | CRB12025UU | 120 | 180 | 25 | 1.5 | 66.9 | 100 | 2.62 |
CRB13025 | CRB13025UU | 130 | 190 | 25 | 1.5 | 69.5 | 107 | 2.82 |
CRB14025 | CRB14025UU | 140 | 200 | 25 | 1.5 | 74.8 | 121 | 2.96 |
CRB15025 | CRB15025UU | 150 | 210 | 25 | 1.5 | 76.8 | 128 | 3.16 |
CRB15030 | CRB15030UU | 150 | 230 | 30 | 1.5 | 100 | 156 | 5.3 |
CRB20025 | CRB20025UU | 200 | 260 | 25 | 2 | 84.2 | 157 | 4 |
CRB20030 | — | 200 | 280 | 30 | 2 | 114 | 200 | 6.7 |
CRB20035 | — | 200 | 295 | 35 | 2 | 151 | 252 | 9.58 |
CRB25025 | CRB25025UU | 250 | 310 | 25 | 2.5 | 69.3 | 150 | 4.97 |
CRB25030 | — | 250 | 330 | 30 | 2.5 | 126 | 244 | 8.1 |
CRB25040 | — | 250 | 355 | 40 | 2.5 | 195 | 348 | 14.8 |
CRB30025 | CRB30025UU | 300 | 360 | 25 | 2.5 | 76.3 | 178 | 5.88 |
CRB30035 | — | 300 | 395 | 35 | 2.5 | 183 | 367 | 13.4 |
CRB30040 | — | 300 | 405 | 40 | 2.5 | 212 | 409 | 17.2 |
CRB40035 | — | 400 | 480 | 35 | 2.5 | 156 | 370 | 14.5 |
CRB40040 | — | 400 | 510 | 40 | 2.5 | 241 | 531 | 23.5 |
CRB40070 | — | 400 | 580 | 70 | 2.5 | 470 | 811 | 72.4 |
CRB50040 | — | 500 | 600 | 40 | 2.5 | 239 | 607 | 26 |
CRB50050 | — | 500 | 625 | 50 | 2.5 | 267 | 653 | 41.7 |
CRB50070 | — | 500 | 680 | 70 | 2.5 | 536 | 1020 | 86.1 |
CRB60040 | — | 600 | 700 | 40 | 3 | 264 | 721 | 30.6 |
CRB60070 | — | 600 | 780 | 70 | 3 | 591 | 1230 | 102 |
CRB600120 | — | 600 | 870 | 120 | 3 | 1250 | 2270 | 274 |
CRB70045 | — | 700 | 815 | 45 | 3 | 281 | 836 | 46.5 |
CRB70070 | — | 700 | 880 | 70 | 3 | 630 | 1390 | 115 |
CRB700150 | — | 700 | 1020 | 150 | 3 | 1660 | 3010 | 478 |
CRB80070 | — | 800 | 950 | 70 | 4 | 468 | 1330 | 109 |
CRB800100 | — | 800 | 1030 | 100 | 4 | 936 | 2040 | 247 |
