型号 |
802824-1 |
802826-1 |
802828-1 |
802830-1 |
802832-1 |
802834-1 |
802836-1 |
802840-1 |
802844 |
802844-1 |
802848 |
802848-1 |
802852-1 |
802856-1 |
802860 |
802860-1 |
802860-1 |
802864 |
802868-1 |
802880 |
802880-1 |
802884 |
802884-1 |
8028/500 |
8028/500-1 |
8028/580 |
8028/580-1 |
8028/630-1 |
8028/750-2 |
8028/750-2 |

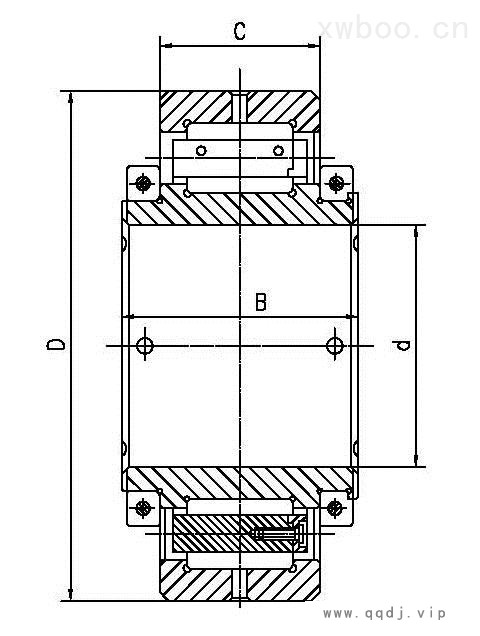

外形尺寸(mm) | 基本负荷(KN) | 重量(KG) | 结构 | ||||||||
d | D | B | C | C1 | K | rsmin | r1smin | 动 | 静 | ||
120 | 180 | 70 | 36 | 32 | 2 | 248 | 335 | 5 | 2 | ||
130 | 200 | 85 | 42 | 2 | 2 | 280 | 385 | 7.5 | 2 | ||
140 | 210 | 85 | 42 | 2 | 2 | 325 | 450 | 8 | 2 | ||
150 | 225 | 90 | 45 | 2.1 | 2.1 | 350 | 500 | 10 | 2 | ||
160 | 240 | 95 | 48 | 2.1 | 2.1 | 400 | 570 | 12 | 2 | ||
170 | 260 | 105 | 54 | 2.1 | 2.1 | 465 | 690 | 15 | 2 | ||
180 | 280 | 110 | 60 | 2.1 | 2.1 | 520 | 760 | 21 | 2 | ||
200 | 310 | 120 | 66 | 2.1 | 2.1 | 710 | 1060 | 26 | 2 | ||
220 | 393.7 | 156 | 90.5 | 2 | 2 | 1210 | 1800 | 85 | 1 | ||
220 | 340 | 135 | 72 | 3 | 3 | 870 | 1360 | 35 | 2 | ||
240 | 440 | 156 | 90.5 | 3 | 3 | 1320 | 2040 | 100 | 1 | ||
240 | 360 | 135 | 72 | 3 | 3 | 860 | 1370 | 39 | 2 | ||
260 | 400 | 145 | 82 | 4 | 4 | 1060 | 1700 | 51 | 2 | ||
280 | 420 | 145 | 82 | 4 | 4 | 1050 | 1710 | 56 | 2 | ||
300 | 558.8 | 220 | 139.7 | 5 | 5 | 2330 | 1710 | 200 | 1 | ||
300 | 460 | 180 | 95 | 4 | 4 | 1440 | 3250 | 83 | 2 | ||
320 | 622.37 | 272 | 160.4 | 7.5 | 7.5 | 2920 | 4400 | 83 | 2 | ||
320 | 480 | 180 | 95 | 4 | 4 | 1530 | 2500 | 330 | 1 | ||
340 | 520 | 190 | 106 | 5 | 5 | 1720 | 2850 | 111 | 2 | ||
400 | 600 | 220 | 148 | 7.5 | 7.5 | 2550 | 4900 | 200 | 1 | ||
400 | 600 | 220 | 148 | 7.5 | 7.5 | 2550 | 4900 | 210 | 2 | ||
420 | 740 | 320 | 148 | 7.5 | 7.5 | 4020 | 6700 | 650 | 1 | ||
420 | 740 | 320 | 190 | 7.5 | 7.5 | 4020 | 6700 | 660 | 2 | ||
500 | 850.9 | 360 | 210 | 7.5 | 7.5 | 5010 | 9000 | 800 | 1 | ||
500 | 850.9 | 360 | 210 | 7.5 | 7.5 | 5010 | 9000 | 820 | 2 | ||
580 | 750 | 160 | 90 | 5 | 5 | 1190 | 2280 | 130 | 1 | ||
580 | 750 | 160 | 90 | 5 | 5 | 1190 | 2280 | 135 | 2 | ||
630 | 794 | 190 | 88 | 5 | 5 | 1760 | 4300 | 160 | 1 | ||
630 | 794 | 190 | 88 | 5 | 5 | 1760 | 4300 | 170 | 2 | ||
750 | 920 | 165 | 78 | 4 | 4 | 1680 | 4050 | 190 | 3 |
