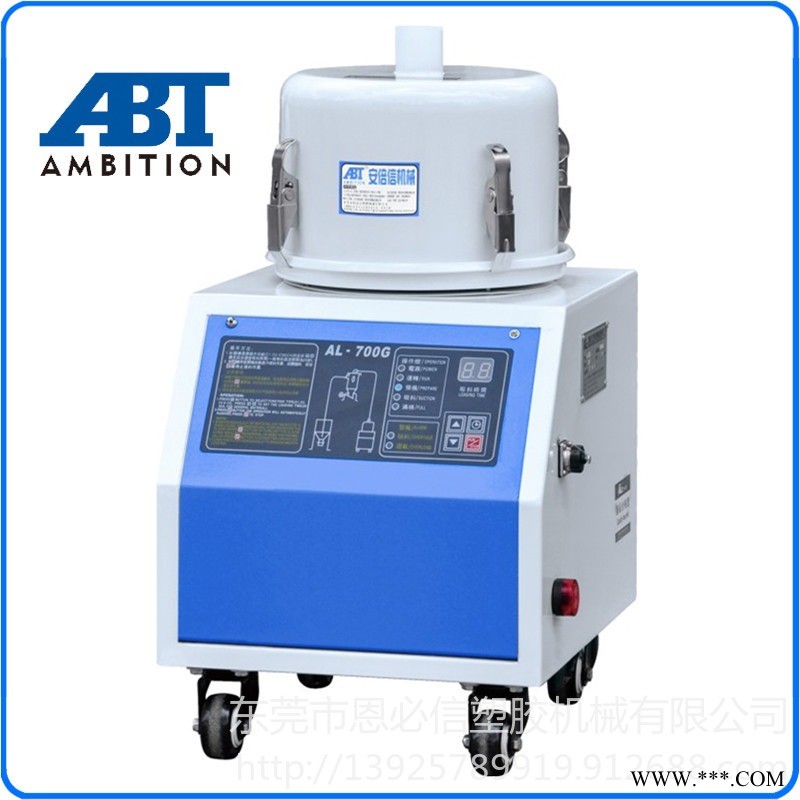

分体式吸料机 全自动真空送料机 不锈钢斗碳刷式ABT恩必信 AAL700G上料机

产品详情

特征描述

螺杆上料机

特点

ASL系列螺旋上料机专为塑料及粉体生产加工行业设计制造

本机与物料接触部分全部采用不锈钢制作，可与各种规格挤出机、高速混合机、塑料搅拌机配套使用，广泛适用于各类粉状、粒状、回料破碎等物料的上（送）料用途

本系列机型单机上料高度可达2-6料，并可多机串联使用，抽送上料速度为1-3吨/每小时。具有：自动控制加料，维修方便，安全可靠，提高工作效率等优点

Screw feeder

Features

The ASL series of screw feeders are designed and manufactured for the plastics and powders processing industry , The contact part of the machine and the material are all made of stainless steel , it can be used with extruders of various specifications , high-speed mixers and plastic mixers ; it is widely used in all kinds of powder , granular and recycled materials . (send ) material use

The height of the single machine of this series can reach 2-6 meters , it can be used in series with multiple machines , and the feeding speed is 1-3 tons / hour . it has the advantages of automatic control feeding , convenient maintenance , safety and reliability , and improved work efficiency

真空吸料（粉）机

特点

微电脑操作控制程序，过载，缺料报警

300G采用高速整流马达，噪音小，寿命长

主机与料斗一体式设计，体积小，重量轻

700G采用高速整流马达，体积小，吸料强，适合用于新料输送

400G、800G、900G及大功率吸料机采用感应式高压风机，噪音小，寿命长

800G具有逆转自动清除粉尘功能

主机与料斗分体设计，安全，简便，独立滤清装置，方便清除粉尘

Vacuum Suction (powder ) Machine

Features

Microprocessor programmed operation , overload , material shortage alarm

300G adopted high-speed motor , small noise , long service life

The host and the hopper integrated design , small volume , light weight

700G adopted high-speed motor , small volume , suction is strong , suitable for new material conveying

800G , 900G using induction type high pressure fan , low noise ,long life

螺旋振动垂直提升机

螺旋振动提升机采用当今的结构设计及模具成型工艺，针对冷却降温干燥和无损输送场合而开发的特定设备，广泛应用于塑料、化工、食品、矿业等加工行业多种物料形态的冷却，干燥和提升输送，在塑料及化工行业我们具有近50套各类型振动提升机工程应用，具备大、中、小全系列提升机量产化制造经验，并打破了大型振动提升机被进口设备垄断的历史

Spiral Vibration Vertical Hoist

Spiral vibrating conveyor adopts state-to-art structural design and molding process , it is specific equipment , developed for cooling , drying and nondestructive conveying way , it is widely used in processing industries such as plastic , chemistry , food and mining industry , etc for cooling ,drying and lifting and conveying of materials in multiple forms In plastic and chemical industries , we have obtained approximately 50 sets of various kinds of spiral vibrating conveyor engineering applications , had experience in mass manufacturing of small , intermediate and Barge full series of vibrating conveyor and broken the history for large-scale vibrating conveyor to be monopolized by imported equipment

特点

一机多用，同时满足垂直输送和降温干燥

结构紧凑，占地面积小

可按客户生产需求定制，高提升高度8米，大输送量4T/H

品牌振动电机，满足长时间连续化生产，工作稳定，维护简便

振动盘为2-4MM厚304不锈钢，采用大型模具一次成型工艺，外圈与内圈各自经拉伸形成螺旋挡板及加强筋板，再与不锈钢中心管连续无应力焊接， 程度上克服了振动产生的扭曲应力和金属疲劳开裂，整体结构强度完全达到德制设备标准

振动盘螺旋均匀，无发拱翘曲现象，物料以排队形式沿螺旋匀速平稳向上输送，在任何高度均无明显回流现象（与一代提升机显著区别）

输送槽内部圆滑无死角积料，便于不同产品的切换清理，交叉污染风险大大降低

通过振动结构优化设计，大程度实现惯性振动，噪音低于80分贝，相对 代提升机，电耗降低30-50%

中心立柱支撑结构，更稳固安全

停车制动设计，可在2秒内完全停止振动，避免停车共振破坏

进料和出料采用加厚及加固设计，提高使用寿命

可按客户要求设计变频控制，按实际要求调节输送时间和速度

可按客户要求设计风冷，提高冷却效率

可按客户要求增加振动盘夹套结构，通冷却介质以强化冷却

Features

A machine serves several purposes , and meanwhile it satisfies vertical conveying cooling and drying

Structure is compact , with small space required

It can be customized according to production requirements of customer , maximum lifting height is 8m  and maximum conveying capacity is 4t/h

Brand vibrating motor can meet long-time continuous production with stabile operation and easy maintenance , Vibration disc , is made of 2-4 mm thick 304 stainless steel , adopting one – time forming process of large –scale mould

The outer ring and the inner ring is formed to be . spiral baffle plate and reinforcement plats separately by tension . Discs are continuously welded with stainless steel central tube without stress , which can overcome the torsional stress and metal fatigue crack generated by vibration so that the overall structure strength fully meets the standard of equipment manufactured in germany

Vibration disc screws are uniform without warping , Materials is transported upward in line along the spiral at uniform and smooth speed and has no back-flow at any height . (it is the significant difference from the first generation type )

Inside the conveying groove is smooth without dead angle for accumulated materials Convenient for switching to clean different products and greatly reduces cross contamination risks

Through optimization design of vibration structure  it maximizes to realize inertial vibration with noise reduced to 80 dB and power consumption is reduced by 30-50% , compared with the first generation type

With central pillar support structure , it is more stable and safe

With shut-down brake design , it can stop vibration within 2 seconds , avoiding resonance damage when shut-down

It adopts thickening and reinforcement design for inlet and outlet so as to improve service life

It can be designed for frequency convertor control according to customer requirements , and adjust conveying time and speed

It can be designed for additional air cooling according to customer requirements , and improve cooling efficiency

Additional cooling channel disk design is optional

工作原理

利用对称振动电机产生斜向高频振动力偶，使物料以振动形式沿转盘螺旋形向上爬升，高温物料在长距离输送过程中得以充分传热和散热

Working Principle

It utilizes symmetric vibrating motor to produce oblique high frequency vibration couple so as to make material spiral upward along turntable in vibration mode , high temperature material can get sufficient heat transmission and heat dissipation during long distance transport process

特点

代替传统风送或气相输送系统，更易于清理，无易损部件

能耗明显降低，节电节气

物料冷却均匀彻底，无内热积聚效应，避免因长时间高温导至变色和降解，产品品质明显改善

充分利用自身散热干燥颗粒表面水分，不经过额外干燥即可满足客户常规注塑要求，提高产品附加值

Features

Replace traditional pneumatic conveying pipeline or dense phase conveying system , it can be more easy to clean without easily wearing parts

It can reduce energy consumption obviously and save electricity and gas

Material is cooled uniformly and thoroughly , avoiding discoloration and degradation caused by tong-time high temperature , and product quality is improved obviously

Make fuji use of self –heat dissipation to dry moisture on granule surface . Without additional drying ,it can satisfy , the conventional injection molding requirements and increase the added value of the products

产品图片

品牌介绍

 东莞市恩必信塑胶机械有限公司

Dongguan Ambition Plastic Machinery Co.,Ltd

  东莞市恩必信塑胶机械有限公司是塑料加工辅助设备的专业供应商，在注塑、挤出、吹塑等不同塑料加工领域拥有丰富的原料处理经验，为电子及汽车零部件、医用制品、光盘、塑料管材及板材、塑料颗粒、功能性母粒、线缆、包装等各种塑料加工行业提供专业的解决方案和高品质的设备，拥有15年行业设计、制造经验，近年来尤其在改性塑料行业崭露头角，凭借良好的口碑和专业的技术屡屡成为该行业众多的供应商，并设计制造安装了多套高端、自动化程度较高的整条生产线。我们可以提供从原料输送、计量、干燥、均化到包装乃至钢平台制作，大型料仓制作等一站式服务的整体解决方案。

  国际品牌，高等质量，中等价位，优质服务，先进技术，这就是恩必信产品的定位，追求，拒平庸的恩必信已经成为塑料机械辅助设备行业值得信赖的产品公司，设计先进、结构合理、节能是本公司产品的特点。产品技术和各项指针均达到国际标准，并率先成为国内该行业取得CE认证及ISO9001国际质量管理体系标准认证公司，先后多个产品获得国家专利。

 本公司以成为塑料成型辅机行业者身份自勉，坚持“专注细节，精益求精，内实外秀，尽善尽美”的质量方针，不断开拓创新，以质量及优质的服务深受广大客户的欢迎和信赖。公司立足于广东珠三角，以东莞这个工业重镇为基点业务迅速遍布全国，目前公司产品已经销往全国几十个大中小城市，并得到广大用户的一致好评，2008年以来公司保持了每年30%以上业绩的增长幅度，产品涵盖整个塑料成型辅助设备。

  多年来我们始终与客户一起思考和分享，在坚持高质量的同时尽可能的为客户降低成本，以达到高性能与低价格的均衡，在通向成功的路上，恩必信永远与您同行。

Dongguan Ambition Plastic Machinery Co.,Ltd. Is a  professional supplier of plastic processing auxiliary equipment, it has rich experience in raw material processing in different plastic processing fields such as injection molding, extrusion, blow molding, etc., for electronic and auto parts, medical products, and optical discs., plastic pipe and sheet, plastic pellets, functional masterbatch , cable, packaging and other plastic processing industries to provide professional solutions and high-quality equipment, with 15years of industry design, manufacturing experience, especially in recent years, especially in modification The plastics industry has emerged as a supplier of many leading companies in the industry with good reputation and professional technology, and has designed and manufactured a number on high-end, high-automatic production lines. We can provide a one-stop solution for one-stop service form raw material conveying, metering, drying, homogenization to packaging to steel platform production and large silo production.

International brand, high quality, medium price, excellent service, advanced technology, this is the positioning of the company, the pursuit of excellence, the rejection of mediocrity has become a reliable product company in the plastic machinery auxiliary equipment industry, advanced design, Reasonable structure, energy saving and high efficiency are the characteristics of our products, Product technology and various indicators have reached international standards, and the first to become the domestic industry to obtain CE certification and ISO9001 international quality management system standards certification company, several products have obtained national patents.

The company is self-proclaimed as a leader in the plastic molding auxiliary machine industry, adheres to the quality policy of“focus on detail, excellence, internal and external show, perfection”, and constantly  develops and innovates, and is well received by customers with perfect quality and excellent service. Welcome and trust. based in the Pearl River Delta of Guangdong Province, the company has rapidly spread all over the country with Dongguan as an industrial center, At present, the company’s products have been sold to dozens of large, medium and small cities across the country, and have been well received by users. Since 2008, the company has maintained 30% per year. The increase in the above results, the product covers the entire plastic molding auxiliary equipment.

Over the years, we have been thinking and sharing with our customers. We insist on high quality and reduce costs for our customers as much as possible to achieve the perfect balance between high performance and low price. On the road to success, ambition will always be with you.
