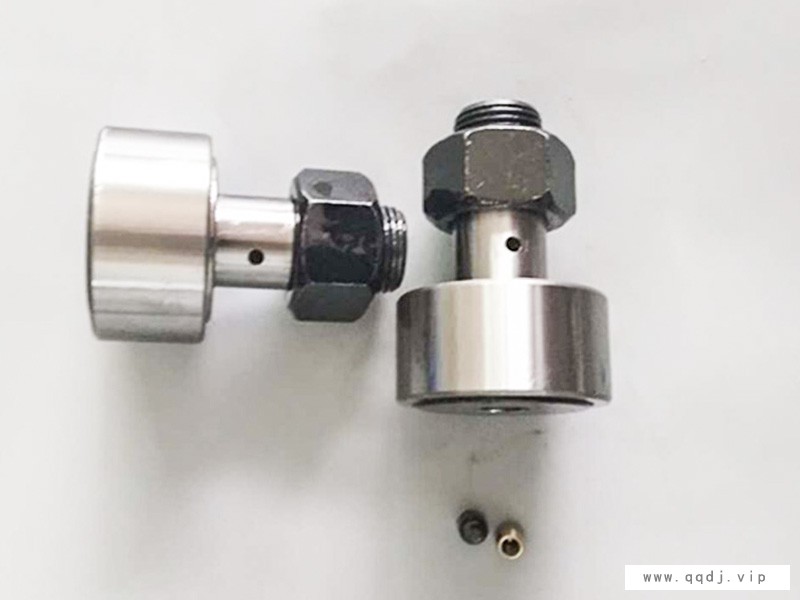

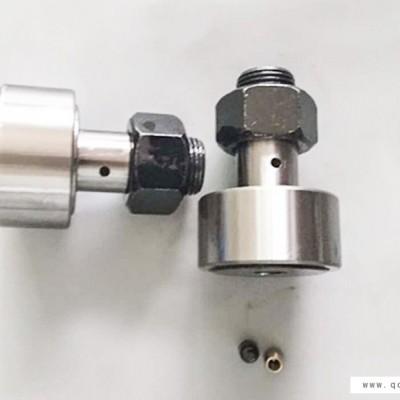

螺栓滚轮轴承KR CF|目前最新的【火爆供应】

详细说明

滚针型螺栓滚轮

轴径	轴承型号		外形尺寸
	Bearing Designation		BoundaryDimensions
Shaft		带偏心套	外径D	螺杆直径d	外圈厚度C	ra	螺杆总长B	B1		G	Mn		C1		d2		d1		B3		e				动

																									Dynamic
mm		With eccentric	mm
16	KR16	KRE16	16	6	11	0.15	28	16		M6		8				45)		0.6		12		9	7	0.5
	KR16PP	KRE16PP	16	6	11	0.15	28	16		M6		8				45)		0.6		12		9	7	0.5
	KRV16	KRVE16	16	6	11	0.15	28	16		M6		8				45)		0.6		12		9	7	0.5
	KRV16PP	KRVE16PP	16	6	11	0.15	28	16		M6		8				45)		0.6		12		9	7	0.5
19	KR19	KRE19	19	8	11	0.15	32	20		M8		10				45)		0.6		14		11	9	0.5
	KR19PP	KRE19PP	19	8	11	0.15	32	20		M8		10				45)		0.6		14		11	9	0.5
	KRV19	KRVE19	19	8	11	0.15	32	20		M8		10				45)		0.6		14		11	9	0.5
	KRV19PP	KRVE19PP	19	8	11	0.15	32	20		M8		10				45)		0.6		14		11	9	0.5
22	KR22	KRE22	22	10	12	0.3	36	23		M10x1		12				4		0.6		17		13	10	0.5
	KR22PP	KRE22PP	22	10	12	0.3	36	23		M10x1		12				4		0.6		17		13	10	0.5
	KRV22	KRVE22	22	10	12	0.3	36	23		M10x1		12				4		0.6		17		13	10	0.5
	KRV22PP	KRVE22PP	22	10	12	0.3	36	23		M10x1		12				4		0.6		17		13	10	0.5
26	KR26	KRE26	26	10	12	0.3	36	23		M10x1		12				4		0.6		17		13	10	0.5
	KR26PP	KRE26PP	26	10	12	0.3	36	23		M10x1		12				4		0.6		17		13	10	0.5
	KRV26	KRVE26	26	10	12	0.3	36	23		M10x1		12				4		0.6		17		13	10	0.5
	KRV26PP	KRVE26PP	26	10	12	0.3	36	23		M10x1		12				4		0.6		17		13	10	0.5
30	KR30	KRE30	30	12	14	0.6	40	25	6	M12x1.5		13		3		6		0.6		23		15	11	0.5
	KR30PP	KRE30PP	30	12	14	0.6	40	25	6	M12x1.5		13		3		6		0.6		23		15	11	0.5
	KRV30	KRVE30	30	12	14	0.6	40	25	6	M12x1.5		13		3		6		0.6		23		15	11	0.5
	KRV30PP	KRVE30PP	30	12	14	0.6	40	25	6	M12x1.5		13		3		6		0.6		23		15	11	0.5
32	KR32	KRE32	32	12	14	0.6	40	25	6	M12x1.5		13		3		6		0.6		23		15	11	0.5
	KR32PP	KRE32PP	32	12	14	0.6	40	25	6	M12x1.5		13		3		6		0.6		23		15	11	0.5
	KRV32	KRVE32	32	12	14	0.6	40	25	6	M12x1.5		13		3		6		0.6		23		15	11	0.5
	KRV32PP	KRVE32PP	32	12	14	0.6	40	25	6	M12x1.5		13		3		6		0.6		23		15	11	0.5
35	KR35	KRE35	35	16	18	0.6	52	32.5	8	M16x1.5		17		3		6		0.8		27		20	14	1
	KR35PP	KRE35PP	35	16	18	0.6	52	32.5	8	M16x1.5		17		3		6		0.8		27		20	14	1
	KRV35	KRVE35	35	16	18	0.6	52	32.5	8	M16x1.5		17		3		6		0.8		27		20	14	1
	KRV35PP	KRVE35PP	35	16	18	0.6	52	32.5	8	M16x1.5		17		3		6		0.8		27		20	14	1
	NUKR35	NUKRE35	35	16	18	0.6	52	32.5	8	M16x1.5		17		3		6		0.8		21		20	14	1
40	KR40	KRE40	40	18	20	1	58	36.5	8	M18x1.5		19		3		6		0.8		32		22	16	1
	KR40PP	KRE40PP	40	18	20	1	58	36.5	8	M18x1.5		19		3		6		0.8		32		22	16	1
	KRV40	KRVE40	40	18	20	1	58	36.5	8	M18x1.5		19		3		6		0.8		32		22	16	1
	KRV40PP	KRVE40PP	40	18	20	1	58	36.5	8	M18x1.5		19		3		6		0.8		32		22	16	1
	NUKR40	NUKRE40	40	18	20	1	58	36.5	8	M18x1.5		19		3		6		0.8		23		22	16	1
47	KR47	KRE47	47	20	24	1	66	40.5	9	M20x1.5		21		4		8		0.8		37		24	18	1
	KR47PP	KRE47PP	47	20	24	1	66	40.5	9	M20x1.5		21		4		8		0.8		37		24	18	1
	KRV47	KRVE47	47	20	24	1	66	40.5	9	M20x1.5		21		4		8		0.8		37		24	18	1
	KRV47PP	KRVE47PP	47	20	24	1	66	40.5	9	M20x1.5		21		4		8		0.8		37		24	18	1
	NUKR47	NUKRE47	47	20	24	1	66	40.5	9	M20x1.5		21		4		8		0.8		37		24	18	1
52	KR52	KRE52	52	20	24	1	66	40.5	9	M20x1.5		21		8		4		0.8		37		24	18	1
	KR52PP	KRE52PP	52	20	24	1	66	40.5	9	M20x1.5		21		8		4		0.8		37		24	18	1
	KRV52	KRVE52	52	20	24	1	66	40.5	9	M20x1.5		21		8		4		0.8		37		24	18	1
	KRV52PP	KRVE52PP	52	20	24	1	66	40.5	9	M20x1.5		21		8		4		0.8		37		24	18	1
	NUKR52	NUKRE52	52	20	24	1	66	40.5	9	M20x1.5		21		8		4		0.8		31		24	18	1
62	KR62	KRE62	62	24	29	1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
	KR62PP	KRE62PP	62	24	29	1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
	KRV62	KRVE62	62	24	29	1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
	KRV62PP	KRVE62PP	62	24	29	1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
	NUKR62	NUKRE62	62	24	29	1	80	49.5	11	M24x1.5		25		8		4		0.8		38		28	22	1
72	KR72	KRE72	72	24	29	1.1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
	KR72PP	KRE72PP	72	24	29	1.1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
	KRV72	KRVE72	72	24	29	1.1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
	KRV72PP	KRVE72PP	72	24	29	1.1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
	NUKR72	NUKRE72	72	24	29	1.1	80	49.5	11	M24x1.5		25		8		4		0.8		44		28	22	1
80	KRV80	KRE80	80	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	KR80PP	KRE80PP	80	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	KRV80	KRVE80	80	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	KRV80PP	KRVE80PP	80	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	NUKR80	NUKRE80	80	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		47		35	29	1.5
85	KR85	KRE85	85	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	KR85PP	KRE85PP	85	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
90	KR90	KRE90	90	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	KR90PP	KRE90PP	90	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	KRV90	KRVE90	90	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	KRV90PP	KRVE90PP	90	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		53		35	29	1.5
	NUKR90	NUKRE90	90	30	35	1.1	100	63	15	M30x1.5		32		8		4		1		47		35	29	1.5


轴径						BoundaryDimensions													Mounting	Maximum	Basic	Basic	Maximum
					重量														dimension	tightening	dynamic	static	allowable
	Shoeld type		Sealed type		g														f	torque	load rating	load rating	load
dia	With	With	With	With		外径D	外圈厚度C	螺杆直径d1	螺牙G	G1	B	B1	B2	B3	C1	g1	g2	rsmin	Min.		C	Co
	crowned	cylindrical	crowned	cylindrical
mm	outer ring	outer ring	outer ring	outer ring															mm	Kgf.m	kgf	kgf	kgf
6	CF6R	CF6	CF6UUR	CF6UU	18.5	16	11	6	M6xl	8	12.2max	28.2max	16		0.6	*4		0.3	11	0.3	370	370	200
										-9	-12	-28			-0.5
8	CF8R	CF8	CF8UUR	CF8UU	28.5	19	11	8	M8x1.25	10	12.2max	32.2max	20		0.6	*4		0.3	13	0.8	430	480	470
										-11	-12	-32			-0.5
10	CF10R	CF10	CF10UUR	CF10UU	45	22	12	10	M10x1.25	12	13.2max	36.2max	23		0.6	*4		0.3	16	1.2	550	700	700
										-13	-13	-36			-0.5			-0.6	-15		-490	-590	-590
	CF10-1R	CF10-1	CF10-1UUR	CF10-1UU	60	26	12	10	M10x1.25	12	13.2max	36.2max	23		0.6	*4		0.3	16	1.2	550	700	700
										-13	-13	-36			-0.5			-0.6	-15		-490	-590	-590
12	CF12R	CF12	CF12UUR	CF12UU	95	30	14	12	M12x1.5	13	15.2max	40.2max	25	6	0.6	6	3	0.6	21	2.2	810	1000	1000
										-14	-15	-42			-0.5			-1
	CF12-1R	CF12-1	CF12-1UUR	CF12-1UU	105	32	14	12	M12x1.5	13	15.2max	40.2max	25	6	0.6	6	3	0.6	21	2.2	810	1000	1000
										-14	-15	-42			-0.5			-1
16	CF16R	CF16	CF16UUR	CF16UU	170	35	18	16	M16x1.5	17	19.6max	52.1max	32.5	8	0.8	6	3	0.6	26	5.8	1230	1870	1870
										-18	-19.5	-52						-1	-25		-1180	-1760	-1760
18	CF18R	CF18	CF18UUR	CF18UU	250	40	20	18	M18x1.5	19	21.6max	58.1max	36.5	8	0.8	6	3	1	29	8.5	1500	2570	2570
										-20	-21.5	-58									-1600	-2770	-2710
20	CF20R	CF20	CF20UUR	CF20UU	460	52	24	20	M20x1.5	21	25.6max	66.1max	40.5	-10	0.8	8	4	1	34	12	21110	3530	3280
										-22	-25.5	-66		9					-37		-2200	-3850
	CF20-1R	CF20-1	CF20-1UUR	CF20-1UU	385	47	24	20	M20x1.5	21	25.6max	66.1max	40.5	-12	0.8	8	4	1	34	12	21110	3530	3280
										-22	-25.5	-66		9					-37		-2200	-3850
24	CF24R	CF24	CF24UUR	CF24UU	815	62	29	24	M24x1.5	25	30.6max	80.1max	49.5	-12	0.8	8	4	1	40	22	31110	5370	4550
											-30.5	-80		11							-2930	-4980
	CF24-1R	CF24-1	CF24-1UUR	CF24-1UU	1140	72	29	24	M24x1.5	25	30.6max	80.1max	49.5	-12	0.8	8	4	1	40	22	31110	5370	4550
											-30.5	-80									-2930	-4980
30	CF30R	CF30	CF30UUR	CF30UU	1870	80	35	30	M30x1.5	32	37max	100max	63	15	1	8	4	1	49	46	4630	8680	7510
											-37	-100						-1.5	-47		-3410	-7380	-7380
	CF30-1R	CF30-	CF30-1UUR	CF30-1UU	2030	85	35	30	M30x1.5	32	37max	100max	63	15	1	8	4	1	49	46	4630	8680	7510
											-37	-100						-1.5	-47		-3410	-7380	-7380
	CF30-2R	CF30-2	CF30-2UUR	CF30-2UU	2220	90	35	30	M30x1.5	32	37max	100max	63	15	1	8	4	1	49	46	4630	8680	7510
											-37	-100						-1.5	-47		-3410	-7380	-7380
