鑫美特移动小剪举升机厂家直销

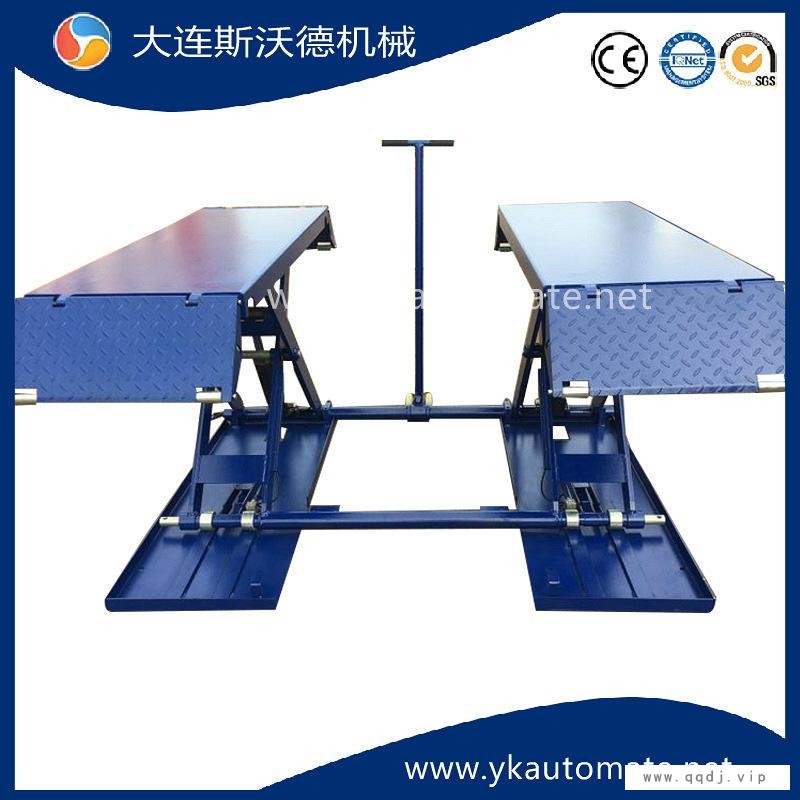

MID-RISESCISSOR LIFT MT-W3000

特点/Features:

1.具有较低的工作平台，配有上车引桥；

2.采用双缸驱动，机械同步；

3.配置机械安**锁，确保举升机在不同的高度时得到**安**保护；

4.可移动液压动力单元，电控气动解锁，移动灵活方便；

5.无需安装即可直接使用。

1.Ideal**** for quick tyre replacement and simple serv** alongside of vehicle

2.Surfacemounted or movable used, with optional movable kits.

3.Specialand practical platform extension design broadens your serv** s**pe.

4.Pneumaticrelease system decreases noise emitted during serv** work.

5.**nfiguringmechanical safety lock to ensure that lift at different heights to get theabsolute security.

6.Optional24V ****ol voltage

7.Anti-skid platform effectively prevents sudden drop-down of vehicle .

Dynamictesting with 115% of rated capacity and static testing with 150% of ratedcapacity.

技术参数/TECHNICAL SPECIFI**ION:

举升重量/Liftingcapacity…………………..3500kg/7200lbs

**大举升高度/Max Lifting height…………1000mm

**小举升高度/Min. height…………………..110mm

举升时间/Lifting Time…………………………..30S

平台总长度/Overall length forplatform….1400mm

平台总宽度/ Overall width forplatform….1910mm

平台间宽度/Width betweenplatform……..850mm

电机功率/Motor Power…………………………..2.2kw

电源要求/Powersupply………………………….220V/380V/415V

气源要求/Air supply……………………………….6-8bar

重量/Weight…………………………………………..680kg

包装尺寸/Packing size…………………………..2050*1550*220+380*420*1050
