功能:
1.铝杯位于喷枪中 2.杯转环用于在小空间内喷涂 3.很轻的扳机引力让操作员更舒适 4.喷嘴经过优化,可实现高质量的喷涂效果 5.一体式风门调节(加长管钳把的管子)阀规格:

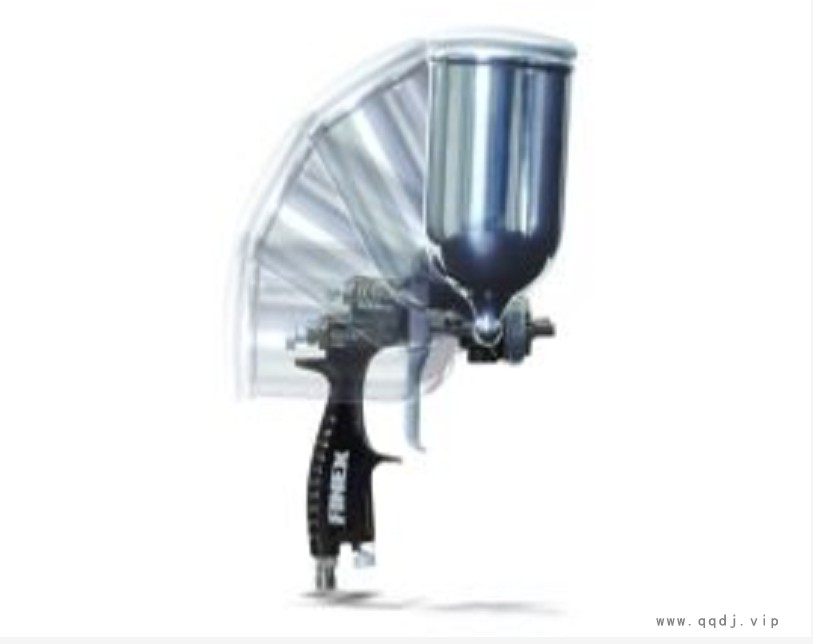

Finex Gravity Feed Airspray Guns | |
Maximum Air Inlet Pressure | 7.0 bar, 0.7 MPa |
Maximum Fluid Working Pressure | 7.0 bar, 0.7 MPa |
Maximum HVLP Inbound Air Pressure | 2.0 bar, 0.2 MPa |
Fluid and Air Operating Temperature Range | 0–43°C |
Air Inlet | 1/4 npsm (R1/4–19) |
Wetted Parts | Aluminum, stainless steel, engineered plastic |
Gravity Cup Size | |
Mini HVLP Gravity Feed Spray Guns | 125 cc |
Standard Conventional and HVLP Gravity Feed Spray Guns | 600 cc |
Weight | |
Mini HVLP Gravity Feed Gun, with cup | 0.4 kg |
Standard Gravity Feed Gun, with cup | 0.5 kg |
Air Consumption | |
Mini HVLP Gravity Feed Spray Guns at 29 psi (2.0 bar, 0.2 MPa) | 0.20 m³/min |
Conventional Gravity Feed Spray Guns at 43 psi (3.0 bar, 0.3 MPa) | 0.27 m³/min |
HVLP Gravity Feed Spray Guns at 29 psi (2.0 bar, 0.2 MPa) | 0.27 m³/min |
Noise Data | |
Mini HVLP Gravity Feed Spray Guns | |
Sound power at 29 psi (2.0 bar, 0.2 MPa) | 85.32 dB(A) |
Sound pressure at 29 psi (2.0 bar, 0.2 MPa) | 78.17 dB(A) |
Conventional Gravity Feed Spray Guns | |
Sound power at 43 psi (3.0 bar, 0.3 MPa) | 89.23 dB(A) |
Sound pressure at 43 psi (3.0 bar, 0.3 MPa) | 81.91 dB(A) |
HVLP Gravity Feed Spray Guns | |
Sound power at 29 psi (2.0 bar, 0.2 MPa) | 87.74 dB(A) |
Sound pressure at 29 psi (2.0 bar, 0.2 MPa) | 80.60 dB(A) |
