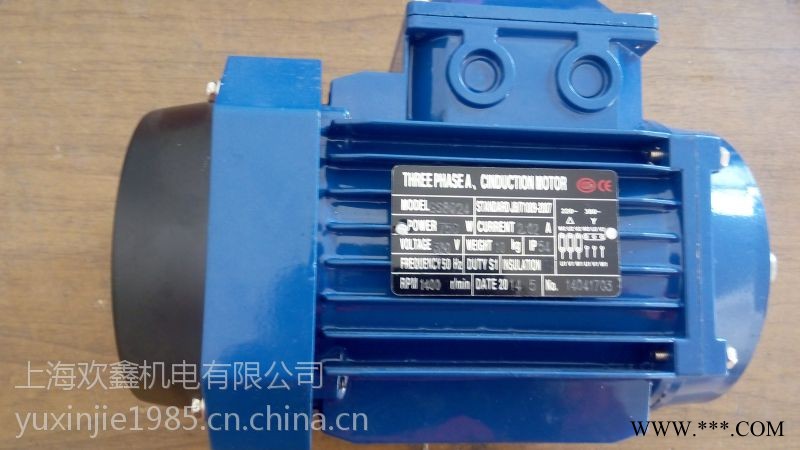

| 品牌 : | 上海欢鑫 | 产品类型 : | 三相异步电动机 |
| 型号 : | YS8024-0.75KW/B14 | 极数 : | 4极 |
| 额定功率 : | 0.75KW | 额定电压 : | 380 |
| 额定转速 : | 1400 | 产品认证 : | CCC |
| 应用范围 : | 机械设备，工业设备，精密机械 |
Y2系列三相异步电动机具有结构新颖、造型美观、噪音低、振动小、绝缘等级高等特 点，产品现已达到九十年代国际先进水平，是Y系列电机的更新产品，外壳防护登记IP54
技术参数：
额定功率：0.12-315 kW 额定电压：380V 额定频率：50Hz 绝缘等级：F级 机座号：63-355
产品规格：
型号
Type 功率(kW)
Power 型号
Type 功率(kW)
Power 型号
Type 功率(kW)
Power 型号
Type 功率(kW)
Power
Y2-63M1-2 0.18 Y2-100L1-8 0.75 Y2-200L1-2 30 Y2-315M-4 132
Y2-63M2-2 0.25 Y2-100L2-8 1.1 Y2-200L2-2 37 Y2-315M-6 90
Y2-63M1-4 0.12 Y2-112M-2 4 Y2-200L-4 30 Y2-315M-8 75
Y2-63M2-4 0.18 Y2-112M-4 4 Y2-200L1-6 18.5 Y2-315M-10 55
Y2-71M1-2 0.37 Y2-112M-6 2.2 Y2-200L2-6 22 Y2-315L1-1 160
Y2-71M2-2 0.55 Y2-112M-8 1.5 Y2-200L-8 15 Y2-315L2-2 200
Y2-71M1-4 0.25 Y2-132S1-2 5.5 Y2-225S-4 37 Y2-315L1-4 160
Y2-71M2-4 0.37 Y2-132S2-2 7.5 Y2-225S-8 18.5 Y2-315L2-4 200
Y2-71M1-6 0.18 Y2-132S-4 5.5 Y2-225M-2 45 Y2-315L1-6 110
Y2-71M2-6 0.25 Y2-132S-6 3 Y2-225M-4 45 Y2-315L2-6 132
Y2-80M1-2 0.75 Y2-132S-8 2.2 Y2-225M-6 30 Y2-315L1-8 90
Y2-80M2-2 1.1 Y2-132M-4 7.5 Y2-225M-8 22 Y2-315L2-8 110
Y2-80M1-4 0.55 Y2-132M1-6 4 Y2-250M-2 55 Y2-315L1-10 75
Y2-80M2-4 0.75 Y2-132M2-6 5.5 Y2-250M-4 55 Y2-315L2-10 90
Y2-80M1-6 0.37 Y2-132M-8 3 Y2-250M-6 37 Y2-355M-2 250
Y2-80M2-6 0.55 Y2-160M1-2 11 Y2-250M-8 30 Y2-355M-4 250
Y2-80M1-8 0.18 Y2-160M2-2 15 Y2-280S-2 75 Y2-355M1-6 160
Y2-80M2-8 0.25 Y2-160M-4-6 11 Y2-280S-4 75 Y2-355M2-6 200
Y2-90S-2 1.5 Y2-160M 7.5 Y2-280S-6 45 Y2-355M1-8 132
Y2-90S-4 1.1 Y2-160M1-8 4 Y2-280S-8 37 Y2-355M2-8 160
Y2-90S-6 0.75 Y2-160M2-8 5.5 Y2-280M-2 90 Y2-355M1-10 110
Y2-90S-8 0.37 Y2-160L-2 18.5 Y2-280M-4 90 Y2-355M2-10 132
Y2-90L-2 2.2 Y2-160L-4 15 Y2-280M-6 55 Y2-355L-2 315
Y2-90L-4 1.5 Y2-160L-6 11 Y2-280M-8 45 Y2-355L-4 315
Y2-90L-6 1.1 Y2-160L-8 7.5 Y2-315S-2 110 Y2-355L-6 250
Y2-90L-8 0.55 Y2-180M-2 22 Y2-315S-4 110 Y2-355L-8 200
Y2-100L-2 3 Y2-180M-4 18.5 Y2-315S-6 75 Y2-355L-10 160
Y2-100L1-4 2.2 Y2-180L-4 22 Y2-315S-8 55
Y2-100L2-4 3 Y2-180L-6 15 Y2-315S-10 45
Y2-100L-6 1.5 Y2-180L-8 11 Y2-315M-2 132
