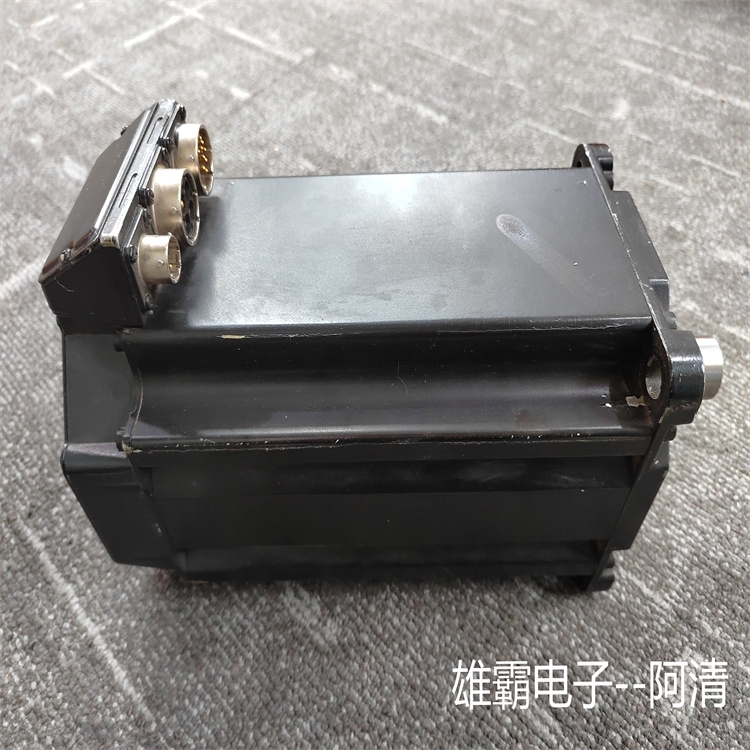

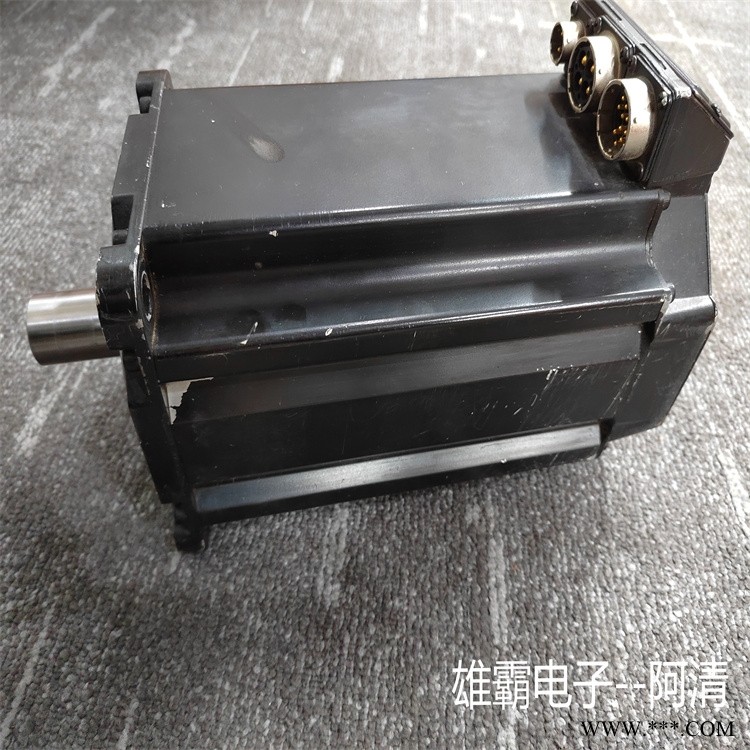

A-B MPL-A1510V-HJ42AA
MPL-A1510V-HJ42AA 技术规格
制造商 罗克韦尔自动化
品牌 艾伦-布拉德利
零件号/目录号 MPL-A1510V-HJ42AA
系列 优质永磁旋转伺服电机
系列类型 低惯性
电压等级 200V
框架尺寸 63 毫米
磁性堆叠长度 1 英寸
额定速度 8000转
回馈 2000线编码器
轴键/密封 轴键/无轴封
连接器 3 个连接器
制动 没有刹车
安装法兰 IEC公制
工厂选项 标准
Allen Bradley/Rockwell Automation 的这款电机是 165 mm 框架尺寸的伺服电机。此外，它没有安装在伺服中的制动器，并配备了 2000 线反馈。这种 MPL 优质永磁伺服电机有一个轴键，但如果需要轴键，轴中没有内置轴密封件。这种交流同步伺服电机的转速为每分钟 8000 转。这款 MP 低惯量交流伺服电机还带有 1 英寸的堆叠长度。
Mpl-a1510v-hj42aa servo motor is designed to use high-quality permanent magnet technology. This permanent magnet servo motor is manufactured by Allen Bradley as a member of Allen Bradley MPL series servo motors and is famous for its low inertia and high output. Mpl-a1510v-hj42aa permanent magnet servo motor is a small base motor, because it only needs 63mm base to install, and its 1-inch magnet stacking length is the smallest magnet stacking length in MPL servo motor series. Although the mpl-a1510v-hj42aa servo motor is small and compact, it can handle high output and demanding applications. With proper maintenance, the servo motor can run for a long time. It uses IEC metric mounting flange as its mounting device and 63mm frame.
Allen Bradley MPL series mpl-a1510v-hj42aa high-quality permanent magnet servo motors can reach the environmental protection level up to IP 66 through appropriate accessories, but in most applications, a lower environmental protection level is sufficient. IP 66 grade is only necessary in applications involving large amounts of fine powder or dust or large amounts of moisture. The operating temperature range of mpl-a1510v-hj42aa high-quality permanent magnet servo motor is 32 to 104 degrees Fahrenheit or 0 to 40 degrees Celsius. The servo motor does not have band brake. When connecting the cable of mpl-a1510v-hj42aa servo motor, the cable shall be as short as possible, and the power line and motor cable shall be separated from the signal cable,
