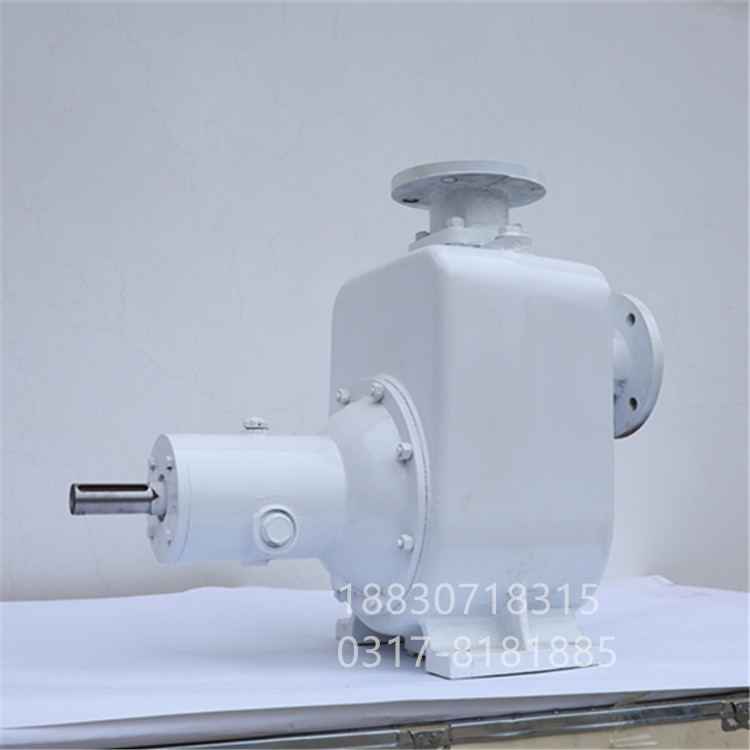

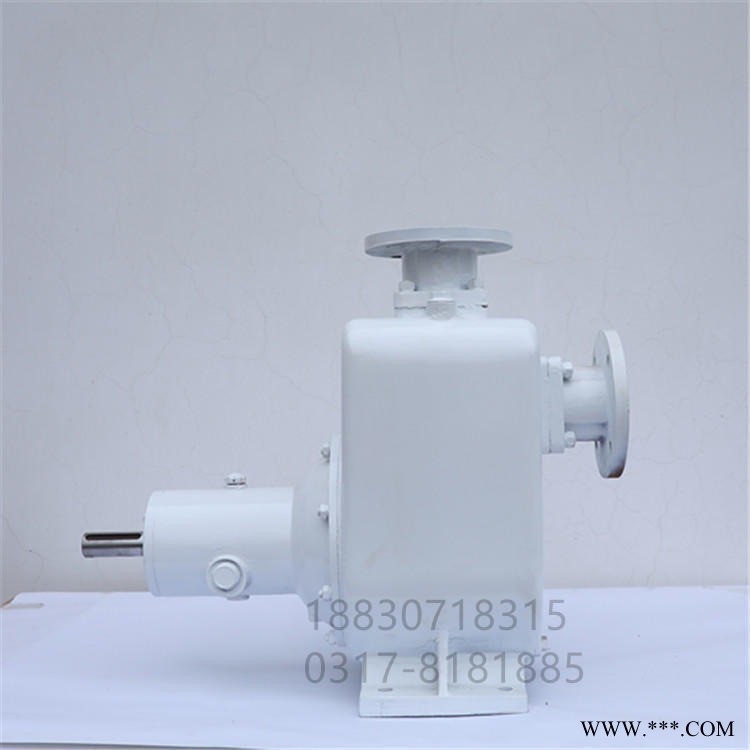

柴油输送泵 40CYZ-40 自吸式离心泵 电机流量10立方

柴油输送泵 40CYZ-40 自吸式离心泵 电机流量10立方

柴油输送泵 40CYZ-40 自吸式离心泵 电机流量10立方

公司占地面积38650平方米，建筑面积20300平方米，是国内的集设计、铸造、生产、销售、服务于一体的容积泵专业制造厂家。公司始建于1984年,有二十几年专业研制经验。目前产品设计采用国际先进水平实体设计软件；产品研发、制造、检验、交付按照ISO9001质量管理体系控制过程质量；产品制造广泛使用加工中心、数控机床、专用精机、高精设备；检测设备拥有显微镜、渐开线检测仪、光学投影仪、测齿仪、脉冲辉光离子氮化炉等大型检测设备，并建有B级试验站。本厂以的产品水平、优质的售后服务、恪守信用而在市场上倍受欢迎，产品 不衰，赢得了用户的普遍赞誉。公司已通过ISO9001：2000国际质量体系认证，中国船级社CCS型式认证，法国船级社BV产品工厂认证，美国船级社ABS产品质量认证，中国渔业船舶检验局船用泵认证,成为中石油物资资源市场成员、中石化物资资源市场成员。河北省知名产品生产企业，船用泵产品承制企业。Hebei far east pump industry manufacturing co., LTD is located in botou city, hebei province, a casting of the township.The company covers an area of 38650 square meters, construction area of 20300 square meters, is the domestic famous design, casting, production, sales and service in one of the positive displacement pump professional manufacturer.Company was founded in 1984, has 20 years experience in professional development.The current product design adopts the international advanced level entity design software;Product research and development, manufacture, inspection, delivery, in accordance with the ISO9001 quality management system of process quality control;Widely used products manufacturing processing center, numerical control machine tools, precision machine, high precision equipment;Testing equipment has universal tool microscope, involute tester, optical projector, universal gear tester, pulse glow ion nitriding furnace and other large-scale testing equipment, and built national B level test station.The factory with the first-class products, excellent after-sales service, abide by credit and popular in the market, the products sell well and win the user's universal praise.The company has passed ISO9001:2000 international quality system certification, China classification society CCS type approval, bureau veritas BV products factory certification, the United States classification society ABS product quality certification, China's Marine fishing vessel inspection bureau pump certification, has been a member of the material resource market in oil, sinopec material resources market member.Well-known products production enterprise in hebei province, Marine pump products enterprises.

   公司以齿轮泵，螺杆泵为主导产品，涉及21个系列，4200多种规格，年生产能力达43000多台（套）。产品行销油田、化工、电力、船舶、冶金、食品等各大行业。产品除满足国内客商的需求外，部分出口至东南亚、美洲、欧洲等和地区。公司在设有30多个分支机构，并建立了完善的营销服务网络，拥有一支庞大敬业的营销服务队伍，可为广大客户提供优质的服务。 公司以严谨的质量体系、先进的生产设备、完善的检测手段、丰富的制造经验、务真求实的远东团队，来有效保证产品质量。以满腔真诚期待与国内外各界人士携手铸就多方共赢的辉煌。Company to "moored far east" brand gear pump, screw pump for the leading product, involves the 21 series, more than 4200 kinds of specifications, annual production capacity of more than 43000 Taiwan (sets).Product marketing oilfield, chemical industry, electric power, shipbuilding, metallurgy, food and other major industry.Products in addition to meet the needs of domestic customers, some exports to southeast Asia, the americas, Europe and other countries and regions.The company has more than 30 branches in major cities throughout the country, and established a perfect marketing service network, has a large professional marketing services team, can provide the high quality service for the customers.Companies with strict quality system, advanced production equipment, perfect detection means, rich manufacturing experience and WuZhen strives for the far east team, to effectively ensure the quality of products.To sincerely look forward to working with people from all walks of life both at home and abroad hand in hand to own a bright multi-win-win situation.

   我公司是一个生产齿轮油泵和螺杆泵的专业公司。公司拥有各种设备80台,主要设备有：C6140 CW6163C车床24台，TX611C/4镗床2台，M131M7130磨床8台，C125A立车2台，Y318K Y3150E滚齿机6台，E3050X16/1摇臂钻床2台，E5163立式钻床2台，B1-400铣床3台，螺杆泵转子专用QH2-007铣床1台，半自动螺旋转子QH2-029B铣床2台，X53K立铣3台，半自动螺旋转子QH2-031 QH2-032磨刃机台。My company is a company specialized in the production of gear oil pump and screw pump.Company has 80 sets of various devices, the main equipment are: C6140 CW6163C 24 sets of lathe, TX611C/boring machine 2 units, 4 M131M7130 grinding machine 8 units, C125A set, 2 sets, Y318K Y3150E hobbing machine 6 units, E3050X16/1 radial drilling machine 2 sets, E5163 vertical drilling machine 2 sets, B1-400 universal milling machine 3 units, screw pump rotor 1 QH2-007 milling machine, semi-automatic screw rotor QH2-029 - b milling machine 2 sets, X53K three vertical milling, semi-automatic screw rotor QH2 QH2-031-031 edge grinding machine is used.

   我公司拥有省计量局制试验台1台，自制试验台3台，使生产产品从原材料投入到产成品出厂实现了全过程检测。产品出厂合格率99%，具备较强的综合配套制造能力。理化试验室、长度计量室是计量确认合格单位，使产品从原材料投入到产成品出厂实现了全过程检测。产品出厂合格率99%，具备较强的综合配套制造能力，公司年可生产各种泵6000多台。My company has the province system test bench 1 bureau of standard measurement, homemade test-bed 3 units, production of products from raw materials into finished goods factory implements the whole process of detection.Product factory qualified rate 99%, have strong ability of comprehensive manufacturing.Physical and chemical laboratory, length measuring room is the national metrological confirmation unit, make our products from raw materials into finished goods factory implements the whole process of detection.Product factory qualified rate 99%, have strong comprehensive manufacturing capacity, company can produce all kinds of pump in more than 6000 units.

运费说明:

   1.本公司常规产品1-3天发货,特殊要求或者需定做的产品发货时间已与客户协商为准, 2.泵运费方式有两种:快递和物流.小泵和小型配件发快递,其余体积较大,数量较多,推荐走专线物流货运,一般南方,中部地区及沿海地区3-5天左右到达.西部,北部较远的地区以及少数二次中转地区5-8天左右可到,具体覆盖范围请咨询公司客服人员.安装使用:请您根据产品说明书的步骤进行操作,如有问题,请联系我公司.为了保护您的利益,我们已经提醒客户在收到货物时,要开箱验货,如在打开验货时发现货物丢失,损害或者不符,请拒收,您签收就代表已准确无误的收到后屋,若在签收货物之后才发现货物丢失或者不符,如不负责.客户收到货后,产品无法安装或者规格有误,本公司提供退货或者换货服务,退货或者换货的客户请保证货物的完好无损,并承担往返运费.客户收到后,如果产品存在质量问题,请在收货后7天内联系我公司,提供相关质量问题图片,我公司将在时间给您退货或者换货,因为我公司已经在发货前已经仔细检查过,所以过期将不提供此项服务,还请谅解.

柴油输送泵 40CYZ-40 自吸式离心泵 电机流量10立方
●特点:
   CYZ自吸泵属自吸式离心泵系列。具有结构简单、操作维护方便、运行平稳、排量大、效率高、便于调节，有较强的自吸能力，适用范围广等特点。

●用途：

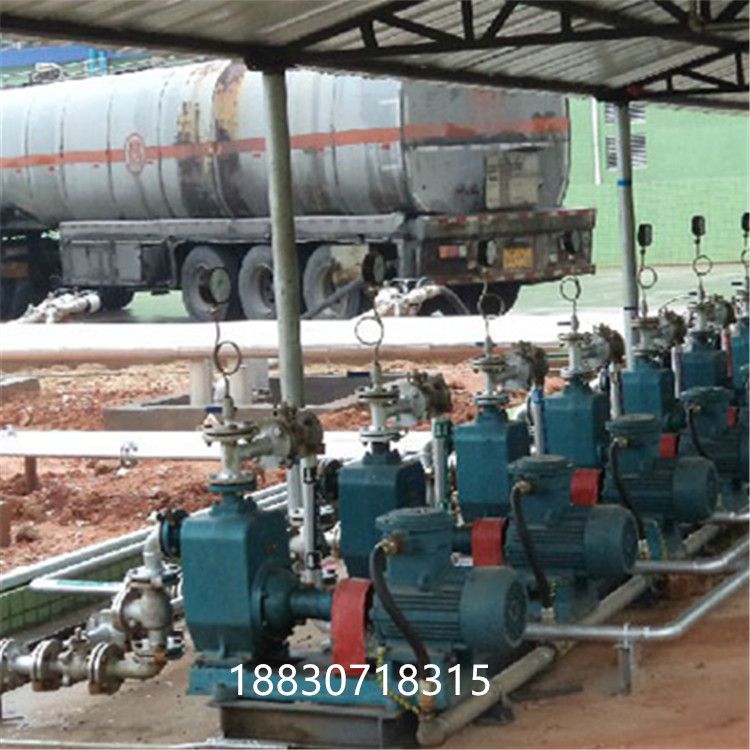

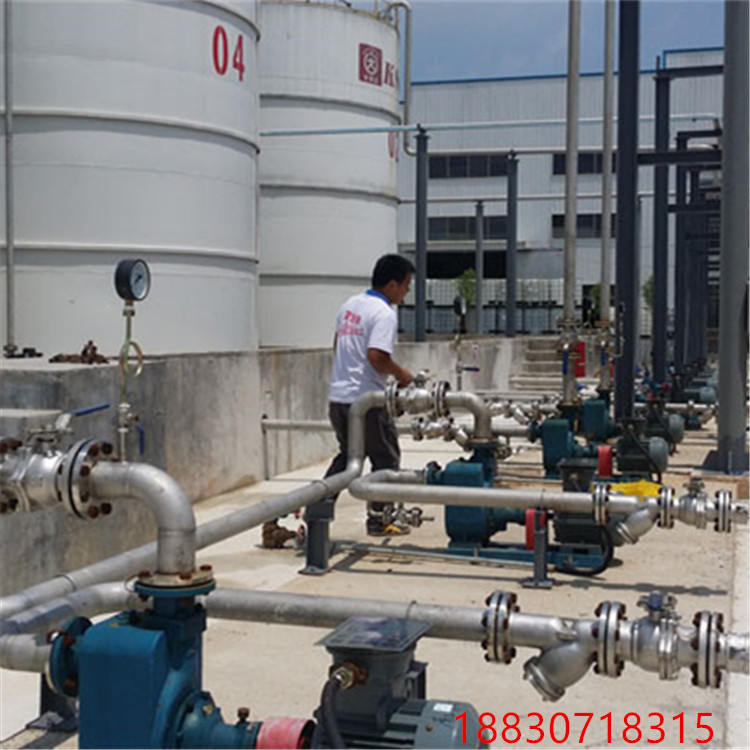

   CYZ自吸泵用来输送汽油、柴油、等石油产品。介质温度在-20℃～+80℃，是一种优良的船用装卸油泵，可兼作扫舱水泵。并适用于陆地油库、油罐车等储油装置的油料输送。也可以用来输送海水、淡水等。

●结构型式：
   CYZ自吸泵采用轴同回液的泵体结构，泵体由吸入室、储液室、涡旋室、回液孔、气液分离室等组成。泵的轴承采用单列向心球轴承。在一些泵的轴承体底部设有冷却室。泵内部高、低压区间有密封环。轴端采用机械密封。
●工作示意图

CYZ自吸泵性能参数表

柴油输送泵40CYZ-40自吸式离心泵配4kw-2电机流量10立方

shaft, bearing, seal ring, stuffing box.
 步：根据被输送液体的性质及操作条件确定类型；目前，市场上的离心泵按被输送液体的性质可主要分为以下几种：
   ①水泵：用于输送清水及物理、化学性质类似于水的清洁液体。
   ②耐腐蚀泵：用于输送酸、碱等腐蚀性液体。
   ③油泵：用于输送石油产品.
   步：根据流量(一般由生产任务定)及计算管路中所需压力，确定泵的型号(从样本或产品目录中选取)。
   ①查性能表或特性曲线，要求流量和压力与管路所需相适应。
   ②若生产中流量有变动，以大流量为准来查找，H也应以大流量对应值查找。
   ③若H和Q与所需要不符，则应在邻近型号中找H和Q都稍大一点的。
   ④若几个型号都满足，应选一个在操作条件下效率的
   ⑤为保险，所选泵可以稍大；但若太大，工作点离率点太远，则能量利用程度低。
   ⑥若被输送液体的性质与标准流体相差较大，则应对所选泵的特性曲线和参数进行校正，看是否能满足要求。
    自吸油泵的基本构造是由六部分组成的分别是叶轮，泵体，泵轴，轴承，密封环，填料函。The basic construction of self-priming pump is composed of six parts, respectively, impeller, pump body, pump

     1、叶轮是自吸离心泵的核心部分，它转速高出力大，叶轮上的叶 片又起到主要作用，叶轮在装配前要通过静平衡实验。叶轮上的内外表面要求光滑，以减少水流的摩擦损失。 1, is the core part of self-priming

centrifugal pump impeller, strength higher than that of its speed, leaf patches on the impeller and play a major role, the impeller through static balancing experiments before assembly.Impeller on

the inside and outside for smooth surface to reduce friction loss of water.
     2、泵体也称泵壳，它是水泵的主体。起到支撑固定 作用，并与安装轴承的托架相连接。2, the pump body also calls the pump shell, it is the body of the pump.Support fixed effect, and connected to

install bearing bracket.
     3、泵轴的作用是借联轴器和电动机相连接，将电动机的转距传给叶轮，所以它是传递机械能的主要部件。3, the role of pump shaft is connected by coupling and motor, the torque of the motor to the

impeller, so it is a major part of the mechanical energy transfer.
     4、轴承是套在 泵轴上支撑泵轴的构件，有滚动轴承和滑动轴承两种。滚动轴承使用牛油作为润滑剂加油要适当一般为2/3～3/4的体积太多会发热，太少又有响声并发热！滑 动轴承使用的是透明油作润滑剂的,加油到油

位线。太多油要沿泵轴渗出并且漂贱，太少轴承又要过热烧坏造成事故！在水泵运行过程中轴承的温度 高在85度一 般运行在60度左右，如果高了就要查找原因（是否有杂质，油质是否发黑，是否进水）并及时处理！4,

bearing is set on the pump shaft support components of pump shaft, which has two kinds of rolling bearing and sliding bearing.Rolling bearing use butter as a lubricant oil is generally appropriate

for two-thirds to three-quarters of the volume too much will be fever, too little and there was a noise and fever!Sliding dynamic bearing is using a transparent oil as lubricant, go to the oil

level line.Too much oil leak to the pump shaft and floating base, too little bearing overheating and burn out cause an accident!In water pump bearing has the highest temperature during the

operation of 85 degrees in a running around 60 degrees, if the high will find reason (if there are impurities, oil is black, whether water) and processed in a timely manner!
     5、密封环又称减漏环。叶轮进口与泵壳间的间隙过大会造 成泵内高压区的水经此间隙流向低压区，影响泵的出水量，效率降低！间隙过小会造成叶轮与泵壳摩擦产生磨损。为了增加回流阻力减少内漏，延缓叶轮和泵壳

的所 使用寿命，在泵壳内缘和叶轮外援结合处装有密封环，密封的间隙保持在0.25～1.10mm之间为宜。 6、填料函主要由填料，水封环，填料筒，填料压 盖，水封管组成。填料函的作用主要是为了封闭泵壳与泵轴之间的空

隙，不让泵内的水流不流到外面来也不让外面的空气进入到泵内。始终保持水泵内的真空！当泵 轴与填料摩擦产生热量就要靠水封管住水到水封圈内使填料冷却！保持水泵的正常运行。所以在水泵的运行巡回检查过程中对填

料函的检查是特别要注意！在运行 600个小时左右就要对填料进行更换。5, sealing ring, also known as minus leakage ring.import and pump impeller shell gap between the will build into water by means of

this clearance flow inside the pump high to a low pressure area, affect the water yield of pump, efficiency!Clearance starts to cause the impeller and pump casing friction wear.In order to increase

the flow resistance reducing internal leakage and delay the service life of the impeller and the pump shell, the pump casing and impeller around the foreign aid junction with sealing ring, sealing

gap in between 0.25 ~ 1.10 mm is advisable.6, stuffing box is mainly composed of filler, seal ring, packing, packing gland, water tubes.The role of the stuffing box is mainly in order to close the

gap between pump casing and pump shaft, don't let the flow within the pump does not flow outside to not let outside air into the pump.Always keeping the vacuum inside the pump!When the pump shaft

and be about to rely on water seal packing friction heat to hold water to the water seal circle packing cooling!Keep the pump running.So in the process of pump run Tours of inspection to check the

stuffing box is paying special attention to!Running about 600 hours will be carried out on the packing replacement.
     自吸离心泵的过流部件    Self-priming centrifugal pump flow components
     自吸离心泵的过流部件有：吸入室，叶轮，压出室三个部分。叶轮室是泵的核心，也是流部件的核心。泵通过叶轮对液体的作功，使其能量增加。叶轮按液体流出的方向分为三类： Self-priming centrifugal pump

flow components are: suction chamber, impeller, the pressure out of the room three parts.Room is the core of the pump impeller, and also the core of the flow components.Of liquid through the

impeller pump work, allow it to increase energy.According to the direction of liquid flow impeller is divided into three categories:
    （1）径流式叶轮（离心式叶轮）液体是沿着与轴线垂直的方向流出叶轮。    （2）斜流式叶轮（混流式叶轮）液体是沿着轴线倾斜的方向流出叶轮。    （3）轴流式叶轮液体流动的方向与轴线平行的。
     叶轮的分类
     叶轮按吸入的方式分为二类：
    （1） 单吸叶轮（即叶轮从一侧吸入液体）。    （2） 双吸叶轮（即叶轮从两侧吸入液体）。
     叶轮按盖板形式分为三类：    （1） 封闭式叶轮。    （2） 敞开式叶轮。    （3） 半开式叶轮
     According to the classification of the impeller impeller suction way is divided into two categories:
(1) single suction impeller (i.e., from one side suction impeller liquid).(i.e., (2) double suction impeller impeller from either side suction liquid).
Impeller press flat form is divided into three categories: (1) closed impeller.(2) open type impeller.(3) half open impeller
