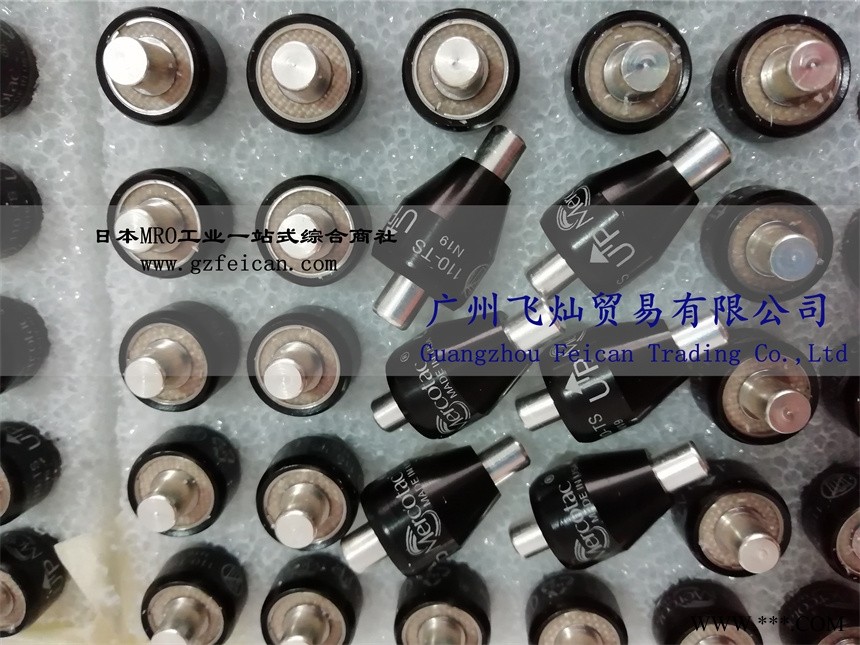

美国mercotac水银滑环

水银滑环又叫旋转连接器，旋转接头，水银接点，导电接头，导电环，集电环，集流环等。不同于传统碳刷滑环，采用液态水银为导电介质，将固定端与旋转端集成在一起，不再需要碳刷。

Model number No. of Conductors Voltage range AC/DC Current rating @240VAC (amp.) Max. freq. (MHz) Contact Resist. Max. RPM Operating temperature °F (°C) max. / °F (°C) min. Typ. Rotation torque (gm-cm) Circuit Sep. Coaxial 110 1 n/a 10 200 <1m 3600 140 (60) / -20 (-29) 35 n/a 110-L 1 n/a 10 200 <1m 1200 140 (60) / -20 (-29) 10 n/a 110-T 1 n/a 10 200 <1m 3600 140 (60) / -20 (-29) 35 n/a 110-TL 1 n/a 10 200 <1m 1200 140 (60) / -20 (-29) 10 n/a 105 1 n/a 4 200 <1m 7500 212 (100) / 45 (7) <10 n/a 205 2 0-250 4 200 <1m 2000 140 (60) / 45 (7) 75 >25M 205-H 2 0-250 4 200 <1m 3600 140 (60) / 45 (7) 35 >25M 205-L 2 0-250 4 200 <1m 1200 140 (60) / -20 (-29) 20 >25M 305 3 0-250 4 200 <1m 1800 140 (60) / 45 (7) 100 >25M 305-L 3 0-250 4 200 <1m 1000 140 (60) / -20 (-29) 100 >25M Modular 1250 1 n/a 250 200 <1m 1200 140 (60) / -20 (-29) 250 n/a 1500 1 n/a 500 200 <1m 300 140 (60) / -20 (-29) 750 n/a 230 2 0-250 30 200 <1m 1800 140 (60) / -20 (-29) 200 >25M 235 2 0-500 30 (@ 500V) 100 <1m 1200 140 (60) / -20 (-29) 400 >50M 215-2K 2 0-2,000 15 (@ 2,000V) 100 <1m 1200 140 (60) / -20 (-29) 400 >50M 330 3 0-250 30 100 <1m 1200 140 (60) / -20 (-29) 300 >25M 331 3 0-250 2@4 / 1@30 100 <1m 1800 140 (60) / -20 (-29) 200 >25M 335 3 0-500 30 (@ 500V) 100 <1m 500 140 (60) / -20 (-29) 700 >50M 430 4 0-250 2@4 / 2@30 100 <1m 1200 140 (60) / -20 (-29) 400 >25M 435 4 0-500 30 (@ 500V) 100 <1m 300 140 (60) / -20 (-29) 850 >50M 4100 4 0-500 3@100 / 1@60 100 <1m 100 160 (70) / -20 (-29) 2500 >50M 630 6 0-250 2@4 / 4@30 100 <1m 300 140 (60) / -20 (-29) 700 >25M 830 8 0-250 2@4 / 6@30 100 <1m 200 140 (60) / -20 (-29) 1000 >25M

	Model 110 10 Amp	Model 110-T & 105 10 Amp / 4 Amp
	Model 1250 250 Amp	Model 1500 500 Amp

	Model 205 4 Amp	Model 230 30 Amp, 250V
	Model 235 30 Amp, 500V	Model 215-2K 15 Amp, 2,000V

	Model 305 4 Amp	Model 331 2@4 amps & 1@30, 250V
	Model 330 30 Amp, 250V	Model 335 30 Amp, 500V

	Model 430 2@4 amps & 2@30, 250V	Model 435 30 Amps, 500V

		Model 4100 3@100 amps & 1@60, 500V

		Model 630 2@4 amps & 4@30, 250V

		Model 830 2@4 amps & 6@30, 250V
