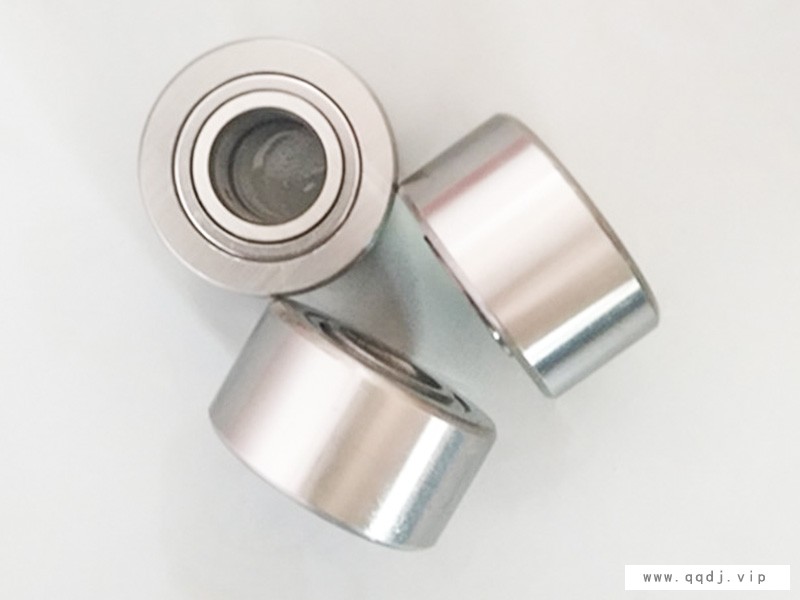

NUTR支撑滚轮轴承
| 轴径 | 轴承型号 | 外形尺寸 | 额定负荷 | 极限转速 | |||||||||||||
| BoundaryDimensions | BasicLoadRating | ||||||||||||||||
| Shaft | 内径d | 外径D | 挡圈高度B | 外圈高度C | d1 | rs | ris | 动载荷 | 静载荷 | 作为支承滚轮 | Fr perm | For perm | |||||
| As yoke type track rollers | |||||||||||||||||
| Diameter | Dynamic | Static | 动 Cw | 静 Cow | Limiting Speed | ||||||||||||
| mm | Bearing Designation | mm | min | min | N | rpm | |||||||||||
| 35 | NUTR15 | 15 | 35 | 19 | 18 | 20 | 0.6 | 0.3 | 23000 | 27000 | 16000 | 18300 | 8300 | 16400 | 6500 | ||
| 40 | NUTR17 | 17 | 40 | 21 | 20 | 22 | 1 | 0.3 | 24800 | 31000 | 18500 | 22800 | 13200 | 22800 | 5500 | ||
| 42 | NUTR1542 | 15 | 42 | 19 | 18 | 20 | 0.6 | 0.3 | 23000 | 27000 | 19400 | 23800 | 23900 | 23900 | 6500 | ||
| 47 | NUTR1747 | 17 | 47 | 21 | 20 | 22 | 1 | 0.3 | 24800 | 31000 | 21300 | 28000 | 28000 | 28000 | 5500 | ||
| NUTR20 | 20 | 47 | 25 | 24 | 27 | 1 | 0.3 | 39000 | 50000 | 28000 | 35000 | 16500 | 33000 | 4200 | |||
| 52 | NUTR2052 | 20 | 52 | 25 | 24 | 27 | 1 | 0.3 | 39000 | 50000 | 31500 | 41000 | 38500 | 41000 | 4200 | ||
| NUTR25 | 25 | 52 | 25 | 24 | 31 | 1 | 0.3 | 43500 | 60000 | 29000 | 37500 | 17300 | 34500 | 3400 | |||
| 62 | NUTR2562 | 25 | 62 | 25 | 24 | 31 | 1 | 0.3 | 43500 | 60000 | 35500 | 50000 | 50000 | 50000 | 3400 | ||
| NUTR30 | 30 | 62 | 29 | 28 | 38 | 1 | 0.3 | 59000 | 79000 | 40000 | 51000 | 23600 | 47000 | 2600 | |||
| 72 | NUTR3072 | 30 | 72 | 29 | 28 | 38 | 1 | 0.3 | 59000 | 79000 | 48000 | 65000 | 65000 | 65000 | 2600 | ||
| NUTR35 | 35 | 72 | 29 | 28 | 44 | 1.1 | 0.6 | 65000 | 93000 | 45000 | 61000 | 32000 | 61000 | 2100 | |||
| 80 | NUTR3580 | 35 | 80 | 29 | 28 | 44 | 1.1 | 0.6 | 65000 | 93000 | 51000 | 72000 | 72000 | 72000 | 2100 | ||
| NUTR40 | 40 | 80 | 32 | 30 | 51 | 1.1 | 0.6 | 90000 | 134000 | 56000 | 76000 | 30500 | 60000 | 1600 | |||
| 85 | NUTR45 | 45 | 85 | 32 | 30 | 55 | 1.1 | 0.6 | 95000 | 147000 | 56000 | 79000 | 31500 | 61000 | 1400 | ||
| 90 | NUTR4090 | 40 | 90 | 32 | 30 | 51 | 1.1 | 0.6 | 90000 | 134000 | 66000 | 96000 | 84000 | 96000 | 1600 | ||
| NUTR50 | 50 | 90 | 32 | 30 | 60 | 1.1 | 0.6 | 10000 | 161000 | 57000 | 81000 | 32000 | 63000 | 1300 | |||
| 100 | NUTR45100 | 45 | 100 | 32 | 30 | 55 | 1.1 | 0.6 | 95000 | 147000 | 72000 | 10800 | 106000 | 108000 | 1400 | ||
| 110 | NUTR50110 | 50 | 110 | 32 | 30 | 60 | 1.1 | 0.6 | 10000 | 161000 | 76000 | 121000 | 121000 | 121000 | 1300 | ||
