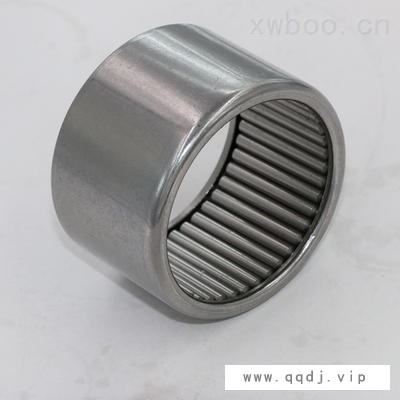

冲压外圈满装滚针轴承F0810
XSP 冲压外圈滚针轴承的外圈是用薄钢板精密冲压成形，结构空间小，是具有较大负荷容量。适用于安装空间受到限制和壳体孔不宜作为滚道的场合。且压入座孔后不必进一步轴向定位。改类滚针轴承一般不用外圈，如果需要使用外圈，可从样本中选取。且压入座孔后不必进一步轴向定位。该类滚针轴承压外圈滚针轴承对轴端轴承部位的密封极为有效。脂润滑滚针轴承长期使用 -20℃ -120℃
| 轴径 Shaft Diameter | 轴承型号及近似重量 Bearing Designation and Mass Approx. | 外形尺寸 Boundary Dimensions(mm） | 基本额定负荷 Basic Load Rating（N) | 极限转速 Limiting Speed | |||||
| 穿孔型 Open end | 重量 Mass | FW | D | C | 动 Cr Dynamic | 静Cor Static | 脂润滑 Grease | ||
| mm | 现行的 Current | 被取代的 Substituted | g | mm | N | rpm | |||
| 6 | F-0608 | 30941/6 | 2.5 | 6 | 10 | 8 | 3080 | 5800 | 12000 |
| 8 | F-0810 | 50941/8 | 3.7 | 8 | 12 | 10 | 4050 | 7150 | 13000 |
| FH-0810 | 941/8 | 7 | 8 | 14 | 10 | 5200 | 7150 | 7400 | |
| FH-0812 | 942/8 | 9 | 8 | 14 | 12 | 4550 | 7150 | 7400 | |
| 9 | F-0910 | 50941/9 | 4 | 9 | 13 | 10 | 4900 | 8050 | 12000 |
| FH-0910 | 941/9 | 6 | 9 | 15 | 10 | 8000 | 11500 | 7100 | |
| FH 9× 15× 13 | 942/9 | 8 | 9 | 15 | 13 | 8560 | 12800 | 7100 | |
| 10 | F-1010 | 50941/10 | 4.2 | 10 | 14 | 10 | 5700 | 9350 | 11000 |
| FH-1010 | 941/10 | 6.5 | 10 | 16 | 10 | 6350 | 10800 | 11000 | |
| F10× 16× 15 | 942/10 | 12 | 10 | 16 | 15 | 6890 | 11500 | 7100 | |
| 12 | F-1212 | 60941/12 | 6 | 12 | 16 | 12 | 6380 | 10900 | 7100 |
| F12× 17× 12 | 941/12 | 8 | 12 | 17 | 12 | 8400 | 11900 | 7100 | |
| F 12× 17× 15 | 942/12 | 10.5 | 12 | 17 | 15 | 9000 | 12500 | 7100 | |
| F 12× 17× 18 | 943/12 | 13 | 12 | 17 | 18 | 9800 | 13500 | 7100 | |
| 15 | F 15× 20× 12 | 941/15 | 10 | 15 | 20 | 12 | 8400 | 11900 | 7100 |
| F 15× 20× 16 | 942/15 | 13.6 | 15 | 20 | 16 | 9500 | 12800 | 7100 | |
| F 15× 20× 20 | 943/15 | 17.2 | 15 | 20 | 20 | 10500 | 16000 | 7100 | |
| FH -1512 | 30941/15 | 12 | 15 | 21 | 12 | 9700 | 15900 | 8100 | |
| 16 | F -1616 | 50941/16 | 17 | 16 | 22 | 16 | 14100 | 25900 | 7700 |
| 17 | F-1712 | 30941/17 | 13 | 17 | 23 | 12 | 10600 | 21600 | 7300 |
| F -1714 | 941/17 | 15 | 17 | 23 | 14 | 12500 | 22500 | 7300 | |
| F -1718 | 942/17 | 21 | 17 | 23 | 18 | 13800 | 24800 | 7300 | |
| 20 | F-2014 | 941/20 | 17 | 20 | 26 | 14 | 15800 | 40500 | 6900 |
| F -2020 | 942/20 | 26 | 20 | 26 | 20 | 18800 | 42500 | 6900 | |
| F -20× 26× 25 | 943/20 | 33 | 20 | 32 | 25 | 20500 | 35500 | 6300 | |
| 25 | F-2516 | 941/25 | 28 | 25 | 32 | 16 | 18700 | 37900 | 5100 |
| F -2522 | 942/25 | 40 | 25 | 32 | 22 | 11000 | 16500 | 5100 | |
| F -25× 32× 25 | 943/25 | 43 | 25 | 32 | 25 | 11500 | 18500 | 5100 | |
| 28 | F-2820 | 60941/28 | 118 | 28 | 35 | 20 | 25700 | 58300 | 4600 |
| 30 | F-3020 | 60941/30 | 42 | 30 | 37 | 20 | 26800 | 62500 | 4300 |
| F -30× 38× 16 | 941/30 | 37.5 | 30 | 38 | 16 | 25500 | 57500 | 4600 | |
| F -30× 38× 24 | 942/30 | 37.5 | 30 | 38 | 24 | 28800 | 64500 | 4300 | |
| F -30× 38× 32 | 943/30 | 81.5 | 30 | 38 | 32 | 34500 | 78900 | 4300 | |
| 32 | F -3216 | 40941/32 | 35 | 32 | 39 | 16 | 25800 | 61500 | 4300 |
| 35 | F -3520 | 60941/35 | 49 | 35 | 42 | 20 | 24000 | 69100 | 3700 |
| F -35× 43× 16 | 941/35 | 41 | 35 | 43 | 16 | 23500 | 68000 | 3700 | |
| F -35× 43× 25 | 942/35 | 72 | 35 | 43 | 25 | 38700 | 86200 | 3200 | |
| F -35× 43× 32 | 943/35 | 90 | 35 | 43 | 32 | 40500 | 97800 | 3200 | |
| 40 | F -4020 | 60941/40 | 56 | 40 | 47 | 20 | 30300 | 82600 | 3300 |
| FH -4032 | 942/40 | 88 | 40 | 50 | 32 | 42500 | 108000 | 2600 | |
| FH -40× 50× 38 | 943/40 | 105 | 40 | 50 | 38 | 44800 | 118500 | 2600 | |
| 45 | FH -40× 55× 38 | 943/45 | 140 | 45 | 55 | 38 | 45800 | 128000 | 2900 |
| 50 | F -5020 | 50941/50 | 78 | 50 | 58 | 20 | 35800 | 98000 | 2600 |
| F H-50× 60× 38 | 943/50 | 145 | 50 | 60 | 38 | 50500 | 145800 | 2600 | |
| 60 | F 60× 68× 40 | 943/60 | 185 | 60 | 68 | 40 | 50200 | 145000 | 2600 |
