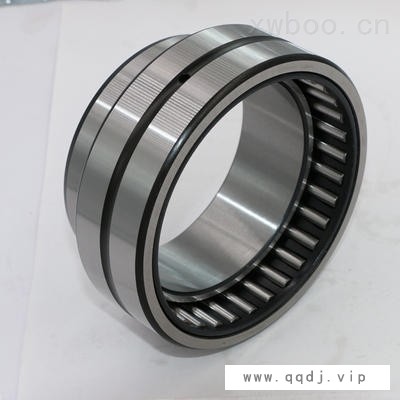

英制带内圈实体套圈滚针轴承BRI102212
XSP 实体套圈滚针轴承结构紧凑，径向尺寸小，负荷容量大，适用于径向轮廓尺寸受到限制的部件中，在轴或外壳有摆动运动的情况下也广泛采用。滚针轴承一般只能承受径向负荷，不能承受轴向负荷。当有轴向负荷时，应和其它轴承组合使用，它不限制轴或外壳的轴向位移。滚针轴承的极限转速较低，在主机转速较高的情况下，应尽量选用带保持架的滚针轴承，和其它类型的滚动轴承相比，在径向尺寸相同的情况下，滚针轴承负荷容量较大，它的刚性较高，但摩擦力矩也较大。此类轴承有很多种结构及尺寸系列，要求轴颈或外壳滚动表面硬度、加工精度和表面粗糙度应与轴承套圈相同。所组装的 G2 级滚针，分组批直径变动量 2µm 以内，除满装滚针轴承外，均采用高刚性保持架，能够正确地引导滚针平行轴线。无内圈滚针轴承 RNA、 NK 型无内圈滚针轴承适用于径向尺寸受限制的部件中，由于无内圈，与其配合的轴颈表面直接滚动面。要求其表面硬度不低于 HRC60，表面粗糙度 Ra 值不大于 0.63µm，该种轴承不限制或外壳的轴向位移，极限转速较高。有内圈滚针轴承 NA、 NKI 型该种轴承由于内圈无挡边，因此可分别安装内圈、外圈、全套滚针和保持架、不限制轴或外壳的轴向位移。由于用保持架将滚针隔开，减少了摩擦，所以可用在转速较高的部件中。
| 轴径 shaft. Dia mm(inch) | 轴承型号 Bearing Designation | 外形尺寸 Boundary Dimensions inch/mm | 标准装配尺寸 Standard mounting dimensions mm | 基本额定负荷 Basic Load Ratings | 极限转速 Limiting Speed (Rpm) | ||||
| 动 C | 静 Co | ||||||||
| d | D | B | dhMax | R?Max | kgf | kgf | |||
| 15.875 | BRI 61812 | 15.875 | 28.575 | 19.050 | 24.5 | 0.6 | 1930 | 2010 | 25000 |
| 19.050 | BRI 82012 | 19.050 | 31.750 | 19.050 | 26.5 | 1 | 2220 | 2490 | 20000 |
| BRI 82016 | 19.050 | 31.750 | 25.400 | 26.5 | 1 | 2810 | 3380 | 20000 | |
| 22.225 | BRI 102212 | 22.225 | 34.925 | 19.050 | 29.7 | 1 | 2340 | 2770 | 18000 |
| BRI 102216 | 22.225 | 34.925 | 25.400 | 29.7 | 1 | 2970 | 3760 | 18000 | |
| 25.400 | BRI 122412 | 25.400 | 38.100 | 19.050 | 32.9 | 1 | 2580 | 3250 | 16000 |
| BRI 122416 | 25.400 | 38.400 | 25.400 | 32.9 | 1 | 3280 | 4420 | 16000 | |
| 28.575 | BRI 142616 | 28.575 | 41.275 | 25.400 | 36 | 1 | 3560 | 5090 | 14000 |
| BRI 142620 | 28.575 | 41.275 | 31.750 | 36 | 1 | 4410 | 6690 | 14000 | |
| 31.750 | BRI 142620 | 31.750 | 44.450 | 25.400 | 39.2 | 1 | 3670 | 5450 | 13000 |
| BRI 162816 | 31.750 | 44.450 | 31.750 | 39.2 | 1 | 4550 | 7180 | 13000 | |
| 34.925 | BRI 162820 | 34.925 | 47.625 | 25.400 | 42.4 | 1 | 3930 | 6120 | 11000 |
| BRI 183020 | 34.925 | 47.625 | 31.750 | 42.4 | 1 | 4870 | 8060 | 11000 | |
| 38.100 | BRI 203316 | 38.100 | 52.388 | 25.400 | 45.1 | 1.5 | 4460 | 6820 | 11000 |
| BRI 203320 | 38.100 | 52.388 | 31.750 | 45.1 | 1.5 | 5530 | 8980 | 11000 | |
| 41.275 | BRI 223516 | 41.275 | 55.562 | 25.400 | 48.3 | 1.5 | 4570 | 7230 | 9500 |
| BRI 223520 | 41.275 | 55.562 | 31.750 | 48.3 | 1.5 | 5670 | 9530 | 9500 | |
| 44.450 | BRI 243716 | 44.450 | 58.738 | 25.400 | 51.5 | 1.5 | 4850 | 7980 | 9000 |
| BRI 243720 | 44.450 | 58.738 | 31.750 | 51.5 | 1.5 | 6010 | 10500 | 9000 | |
| BRI 243820 | 44.450 | 60.325 | 31.750 | 53.1 | 1.5 | 6010 | 10500 | 9000 | |
| BRI 243920 | 47.625 | 31.912 | 31.750 | 54.7 | 1.5 | 6130 | 11000 | 8500 | |
| 50.800 | BRI 264116 | 50.800 | 65.088 | 25.400 | 57.8 | 1.5 | 5200 | 9110 | 8000 |
| BRI 264120 | 50.800 | 65.088 | 31.750 | 57.8 | 1.5 | 6440 | 12000 | 8000 | |
| 57.150 | BRI 284824 | 57.150 | 76.200 | 38.100 | 69 | 1.5 | 9200 | 16100 | 7000 |
| BRI 284828 | 57.150 | 76.200 | 44.450 | 69 | 1.5 | 10700 | 19500 | 7000 | |
| 63.500 | BRI 325224 | 63.500 | 82.550 | 38.100 | 74.3 | 2 | 9640 | 17700 | 6500 |
| BRI 325228 | 63.500 | 82.550 | 44.450 | 74.3 | 2 | 11200 | 21400 | 6500 | |
| 69.850 | BRI 365624 | 69.850 | 88.900 | 38.100 | 80.7 | 2 | 10100 | 19300 | 5500 |
| BRI 365628 | 69.850 | 88.900 | 44.450 | 80.7 | 2 | 11700 | 23300 | 5500 | |
| 76.200 | BRI 406024 | 76.200 | 95.250 | 38.100 | 87 | 2 | 10700 | 21600 | 5500 |
| BRI 406028 | 76.200 | 95.250 | 44.450 | 87 | 2 | 12400 | 26100 | 5500 | |
| 82.550 | BRI 446828 | 82.550 | 107.950 | 44.450 | 99.7 | 2 | 14400 | 26400 | 5000 |
| BRI 446832 | 82.550 | 107.950 | 50.800 | 99.7 | 2 | 15700 | 29500 | 5000 | |
| 88.900 | BRI 487232 | 88.900 | 114.300 | 50.800 | 106.1 | 2 | 16500 | 32100 | 4500 |
| 95.250 | BRI 527632 | 95.250 | 120.650 | 50.800 | 111.4 | 2.5 | 17200 | 34900 | 4000 |
| 101.600 | BRI 568032 | 101.600 | 127.000 | 50.800 | 111.4 | 2.5 | 18000 | 37500 | 4000 |
