风电热熔机对射光栅光幕HNG 3220光电保护装置公司
产品介绍 Product introduction：

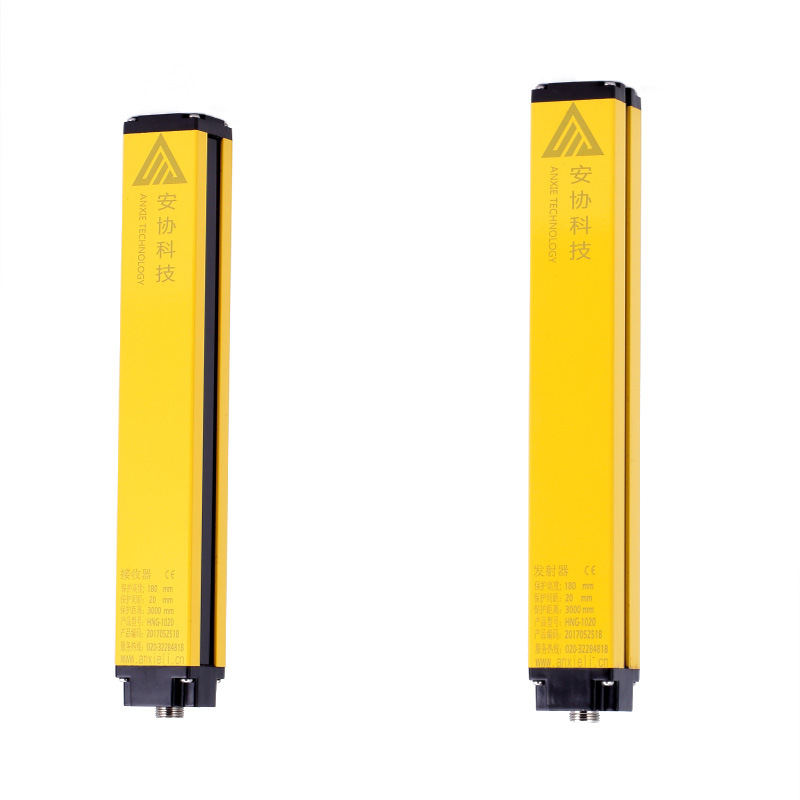

1.外形小巧，尺寸仅 35*28mm
2.安装方式灵活、简便
3.光点循环自检，提升设备安全性。
4.具有防水功能。
5.进口老化设备保护产品的质量安全稳定
6.可提供 PNP 输出，此时应保证后续控制电路符合安全要求，并提供 DC24V 电源

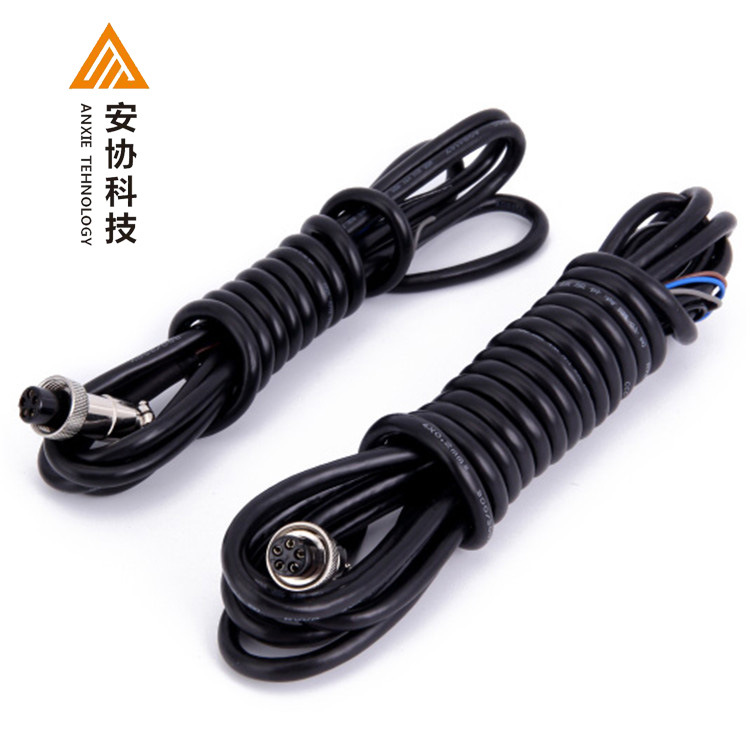

7.标准配置：发光器/2 支，受光器/2 支， P 型控制器/1 只，信号电缆 A 系列 /2m,5m 各两根； B 系列/ 3m、 6m 各两根
1. The appearance is small, only 35 * 28 mm
2. A flexible and easy installation
3. Light circular self-checking, improve equipment safety.
4. Have waterproof function.
5. imported aging equipment to protect the security and stability of the quality of the product
6. Can provide PNP output, should guarantee the follow-up control circuit meet safety requirements, and provide DC24V power supply
7. The standard configuration: light emitting device / 2 teams, by light / 2, P type controller / 1, the only signal cable series A / 2 m, 5 m each two root; B series / 3 m
and 6 m each two root
产品技术参数Product technical bbbbbeters：
| 保护高度 | 60~2000mm（常规） | 工作环境温度 | -10℃~55℃ |
| 光轴间距 | 5mm/10mm/20mm/40mm | 截面尺寸 | 35.5*50mm |
| 光轴数量 | 4、6、8、10…… | 工作环境湿度 | 温度20℃时，空气相对湿度<85% |
| 工作电压 | DC10V~30V | 输出电流 | ≤300mA |
| 功率 | <5W | 光幕形式 | 对射式 |
| 响应时间 | <10ms | 抗光干扰 | 10000Lux(入射角I>5°） |
| 绝缘电阻 | ≥100MΩ | 介电强度 | ACI500V.60S.无击穿或闪烁 |
| 输出方式 | NPN或PNP（常规）/继电器常开/继电器常闭（可根据需求选择） | ||
HNG 产品接线图 Product wiring diagram：
HNG列产品选型表(单位数为mm) HNG series product selection table (unit mm)
| 光轴间距（5mm) |
| 光轴间距（10mm) | ||||||
| 光束数量 | 保护高度 | 外壳高度 | 规格型号 | 光束数量 | 保护高度 | 外壳高度 | 规格型号 | |
| 16 | 75 | 152.5 | HNG 1605 | 8 | 70 | 140 | HNG 0810 | |
| 24 | 115 | 192.5 | HNG 2405 | 12 | 110 | 180 | HNG 1210 | |
| 32 | 155 | 232.5 | HNG 3205 | 16 | 150 | 220 | HNG 1610 | |
| 40 | 195 | 272.5 | HNG 4005 | 20 | 190 | 260 | HNG 2010 | |
| 48 | 235 | 312.5 | HNG 4805 | 24 | 230 | 300 | HNG 2410 | |
| 56 | 275 | 352.5 | HNG 5605 | 28 | 270 | 340 | HNG 2810 | |
| 64 | 315 | 392.5 | HNG 6405 | 32 | 310 | 380 | HNG 3210 | |
| 72 | 355 | 432.5 | HNG 7205 | 36 | 350 | 420 | HNG 3610 | |
| 80 | 395 | 472.5 | HNG 8005 | 40 | 390 | 460 | HNG 4010 | |
| 88 | 435 | 512.5 | HNG 8805 | 44 | 430 | 500 | HNG 4410 | |
| 96 | 475 | 552.5 | HNG 9605 | 48 | 470 | 540 | HNG 4810 | |
| 104 | 515 | 592.5 | HNG 10405 | 52 | 510 | 580 | HNG 5210 | |
| 112 | 555 | 632.5 | HNG 11205 | 56 | 550 | 620 | HNG 5610 | |
| 120 | 595 | 672.5 | HNG 12005 | 60 | 590 | 660 | HNG 6010 | |
| 128 | 635 | 712.5 | HNG 12805 | 64 | 630 | 700 | HNG 6410 | |
|
|
|
|
|
|
|
|
| |
| 光轴间距（20mm) |
| 光轴间距（40mm) | ||||||
| 光束数量 | 保护高度 | 外壳高度 | 规格型号 | 光束数量 | 保护高度 | 外壳高度 | 规格型号 | |
| 4 | 60 | 140 | HNG 0420 | 4 | 120 | 200 | HNG 0440 | |
| 6 | 100 | 180 | HNG 0620 | 6 | 200 | 280 | HNG 0640 | |
| 8 | 140 | 220 | HNG 0820 | 8 | 280 | 360 | HNG 0840 | |
| 10 | 180 | 260 | HNG 1020 | 10 | 360 | 440 | HNG 1040 | |
| 12 | 220 | 300 | HNG 1220 | 12 | 440 | 520 | HNG 1240 | |
| 14 | 260 | 340 | HNG 1420 | 14 | 520 | 600 | HNG 1440 | |
| 16 | 300 | 380 | HNG 1620 | 16 | 600 | 680 | HNG 1640 | |
| 18 | 340 | 420 | HNG 1820 | 18 | 680 | 760 | HNG 1840 | |
| 20 | 380 | 460 | HNG 2020 | 20 | 760 | 840 | HNG 2040 | |
| 22 | 420 | 500 | HNG 2220 | 22 | 840 | 920 | HNG 2240 | |
| 24 | 460 | 540 | HNG 2420 | 24 | 920 | 1000 | HNG 2440 | |
| 26 | 500 | 580 | HNG 2620 | 26 | 1000 | 1080 | HNG 2640 | |
| 28 | 540 | 620 | HNG 2820 | 28 | 1080 | 1160 | HNG 2840 | |
| 30 | 580 | 660 | HNG 3020 | 30 | 1160 | 1240 | HNG 3040 | |
| 32 | 620 | 700 | HNG 3220 | 32 | 1240 | 1320 | HNG 3240 | |
|
|
|
|
|
|
|
|
| |
